LLhT-pHG165a V52A
(Plasmid #90050)

• Purpose: Constitutive expression of a chimeric LacI:TreR transcription repressor
• Depositing Lab: Liskin Swint-Kruse
• Publication: Meinhardt et al Nucleic Acids Res. 2012 Nov;40(21):11139-54. doi: 10.1093/nar/gks806. Epub 2012 Sep 10.

Backbone

• Vector backbone: pHG165a
• Backbone manufacturer: PMID: 3012611 with lacO1 binding site of pHG165 disabled by mutation
• Vector type: Bacterial Expression

Growth in Bacteria

• Bacterial Resistance(s): Ampicillin, 100 μg/mL
• Growth Temperature: 37°C
• Growth Strain(s): DH5alpha
• Copy number: Low Copy

Gene/Insert

• Gene/Insert name: LLhT/V52A
• Species: Synthetic
• Mutation: V52A
• Promoter: Iq

Cloning Information

• Cloning method: Ligation Independent Cloning

Resource Information

• Supplemental Documents:

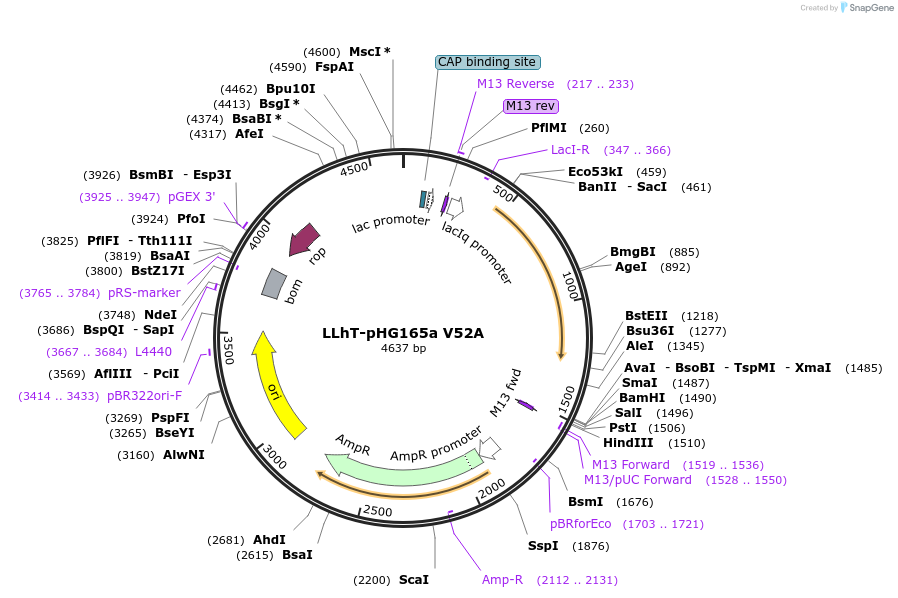

  • Annotated sequence

Terms and Licenses

• Academic/Nonprofit Terms:
  • UBMTA
• Industry Terms:
  • Not Available to Industry

Depositor Comments

E. coli LacI DNA binding domain, LacI linker region, and E. coli TreR regulatory domain . The start codon of these genes is GTG, which is an alternative MET start codon in E. coli.
