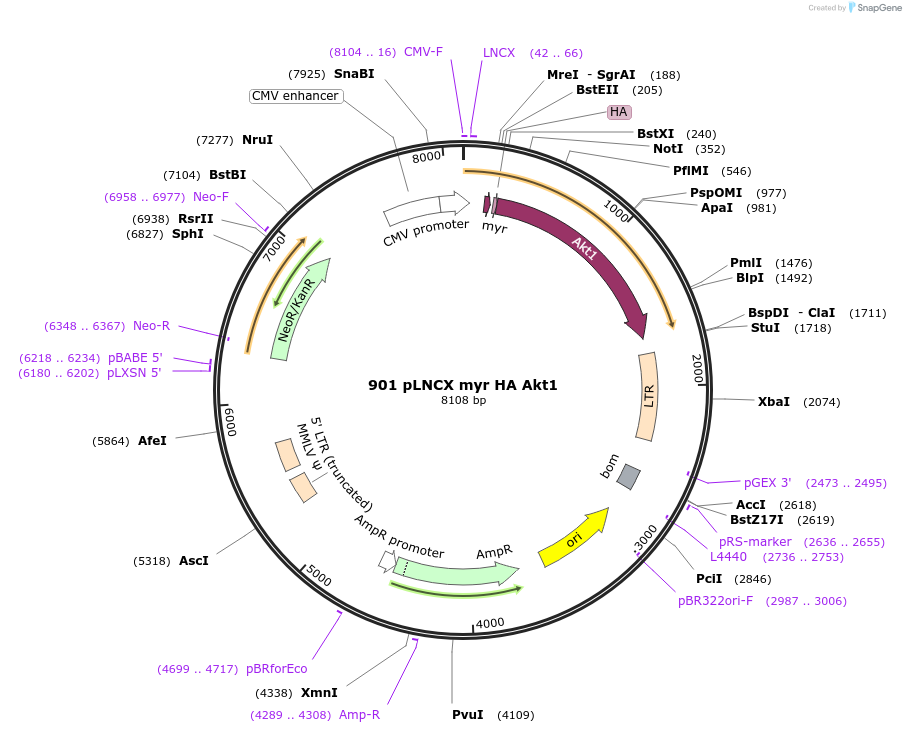

901 pLNCX myr HA Akt1
(Plasmid #9005)

• Depositing Lab: William Sellers
• Publication: Ramaswamy et al Proc Natl Acad Sci U S A. 1999 Mar 2. 96(5):2110-5.

Backbone

• Vector backbone: pLNCX
• Backbone manufacturer: BD Biosciences
• Backbone size w/o insert (bp): 6600
• Vector type: Mammalian Expression, Retroviral
• Selectable markers: Neomycin (select with G418)

Growth in Bacteria

• Bacterial Resistance(s): Ampicillin, 100 μg/mL
• Growth Temperature: 37°C
• Growth Strain(s): DH5alpha
• Copy number: High Copy

Gene/Insert

• Gene/Insert name: Akt1
• Alt name: Akt
• Species: H. sapiens (human)
• Insert Size (bp): 1500
• Entrez Gene: AKT1 (a.k.a. AKT, PKB, PKB-ALPHA, PRKBA, RAC, RAC-ALPHA)
• Tags / Fusion Proteins:
  • Myr (N terminal on insert)
  • HA (N terminal on insert)

Cloning Information

• Cloning method: Restriction Enzyme
• 5′ sequencing primer: CMV Forward

Resource Information

• Articles Citing this Plasmid:
  • 20 References

Terms and Licenses

• Academic/Nonprofit Terms:
  • UBMTA
• Industry Terms:
  • Not Available to Industry

Depositor Comments

An Akt-1 cDNA was amplified by reverse transcription-coupled PCR from total HeLa cell RNA and reamplified with a 5' primer containing a Kozak sequence and sequences encoding a hemagglutinin (HA) epitope and cloned into pLNCX to give pLNCX-HA-Akt. A double-stranded oligonucleotide encoding the src myristoylation sequence was inserted 5' of the HA tag to generate pLNCX-Myr-HA-Akt.
