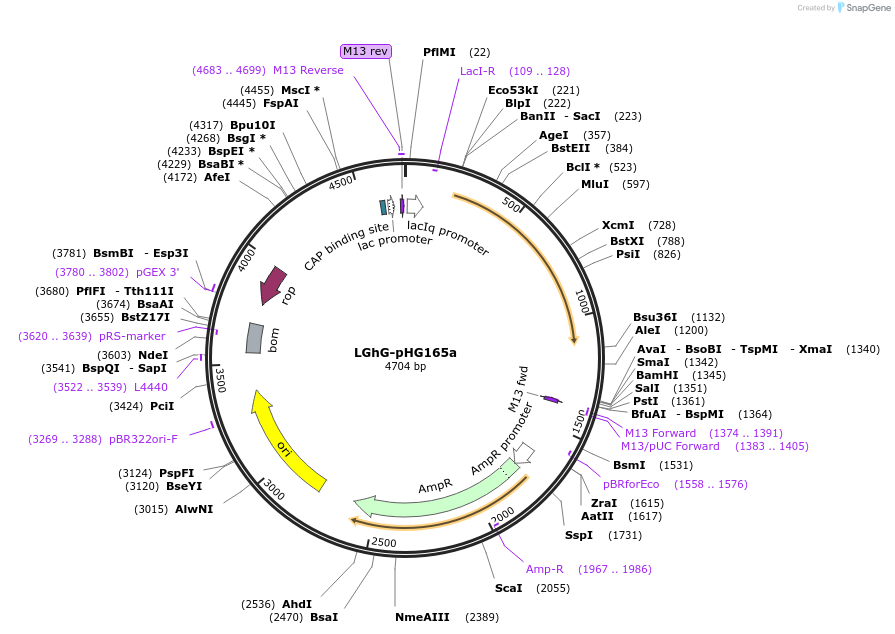

LGhG-pHG165a
(Plasmid #90048)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 90048 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

Backbone

  • Vector backbone
    pHG165a
  • Backbone manufacturer
    PMID: 3012611 with lacO1 binding site of pHG165 disabled by mutation
  • Vector type
    Bacterial Expression

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    Low Copy

Gene/Insert

  • Gene/Insert name
    LGhG
  • Species
    Synthetic
  • Promoter Iq

Cloning Information

  • Cloning method Ligation Independent Cloning

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.

Depositor Comments

E. coli LacI DNA binding domain, E. coli GalR linker region, and GalR regulatory domain . The start codon of these genes is GTG, which is an alternative MET start codon in E. coli. The GalR insert contains an E230K mutation compared to wild type.

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    LGhG-pHG165a was a gift from Liskin Swint-Kruse (Addgene plasmid # 90048 ; http://n2t.net/addgene:90048 ; RRID:Addgene_90048)

  • For your References section:

    Comparing the functional roles of nonconserved sequence positions in homologous transcription repressors: implications for sequence/function analyses. Tungtur S, Meinhardt S, Swint-Kruse L. J Mol Biol. 2010 Jan 29;395(4):785-802. doi: 10.1016/j.jmb.2009.10.001. Epub 2009 Oct 8. 10.1016/j.jmb.2009.10.001 PubMed 19818797
