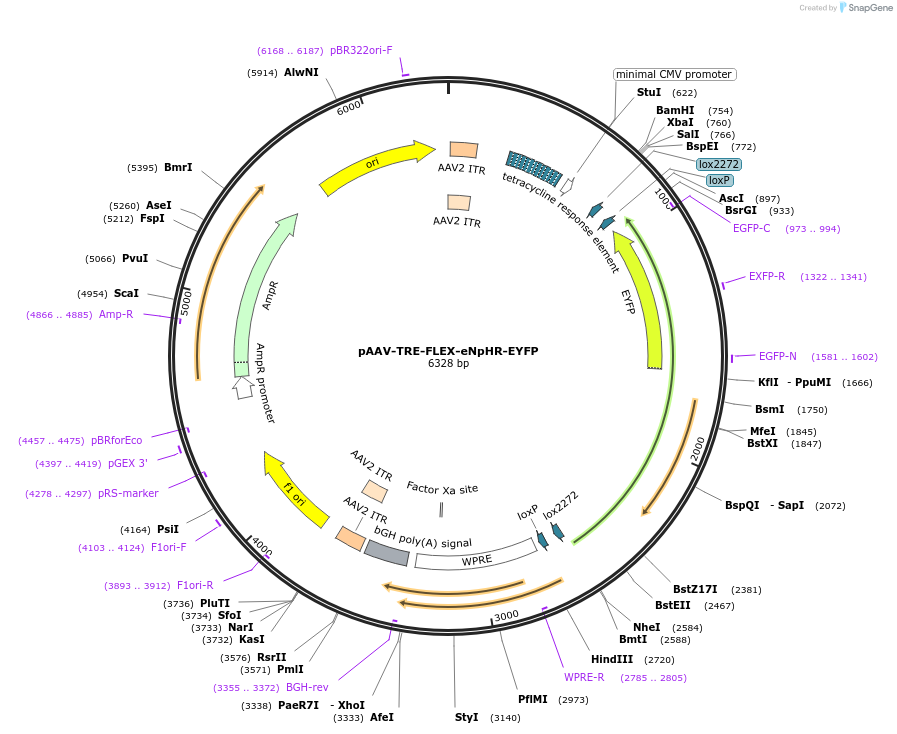

pAAV-TRE-FLEX-eNpHR-EYFP
(Plasmid #89876)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 89876 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

Backbone

  • Vector backbone
    pAAV-MCS
  • Backbone manufacturer
    Stratagene
  • Total vector size (bp) 6327
  • Vector type
    Mammalian Expression, AAV

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    30°C
  • Growth Strain(s)
    NEB Stable
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    eNpHR=EYFP
  • Species
    Synthetic
  • Insert Size (bp)
    1671
  • Promoter TetO
  • Tag / Fusion Protein
    • EYFP (C terminal on insert)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site BamHI (not destroyed)
  • 3′ cloning site HindIII (not destroyed)
  • 5′ sequencing primer N/A
  • 3′ sequencing primer N/A
    • (Common Sequencing Primers)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pAAV-TRE-FLEX-eNpHR-EYFP was a gift from Hyungbae Kwon (Addgene plasmid # 89876 ; http://n2t.net/addgene:89876 ; RRID:Addgene_89876)

  • For your References section:

    Temporally precise labeling and control of neuromodulatory circuits in the mammalian brain. Lee D, Creed M, Jung K, Stefanelli T, Wendler DJ, Oh WC, Mignocchi NL, Luscher C, Kwon HB. Nat Methods. 2017 May;14(5):495-503. doi: 10.1038/nmeth.4234. Epub 2017 Apr 3. 10.1038/nmeth.4234 PubMed 28369042
