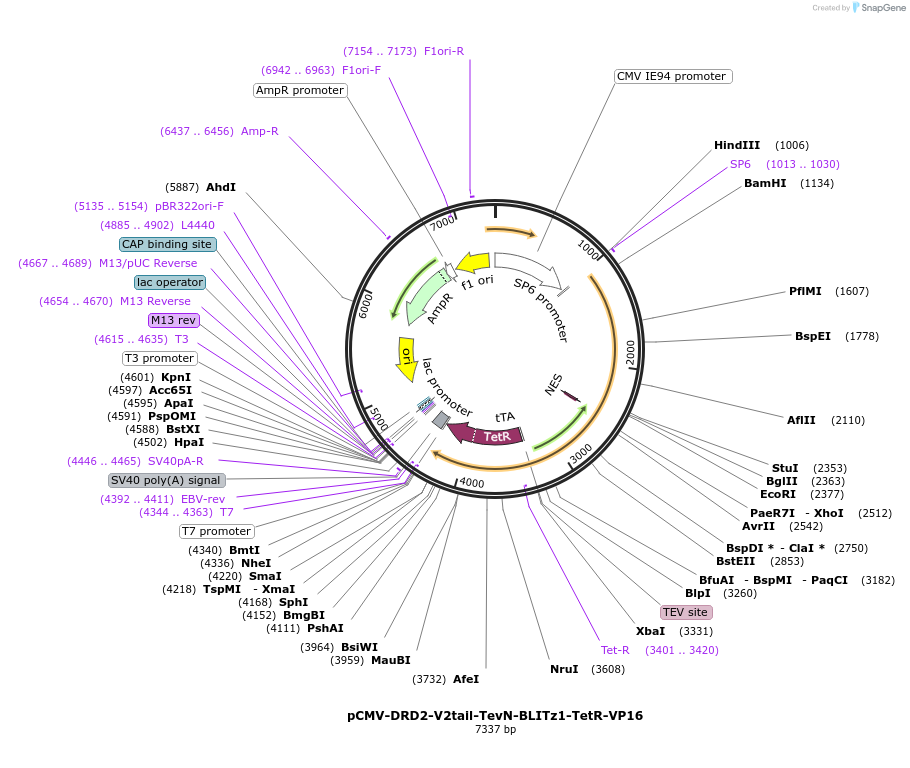

pCMV-DRD2-V2tail-TevN-BLITz1-TetR-VP16
(Plasmid #89870)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 89870 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

Backbone

  • Vector backbone
    pSyc181 P2A
  • Total vector size (bp) 7428
  • Vector type
    Mammalian Expression

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    DRD2-V2tail-TevN-BLITz1-TetR-VP16
  • Alt name
    short isoform of DRD2
  • Species
    Synthetic
  • Insert Size (bp)
    3366
  • Mutation
    short isoform of DRD2 (deletion of 242-270)
  • Promoter CMV

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site HindIII (not destroyed)
  • 3′ cloning site NheI (not destroyed)
  • 5′ sequencing primer CGC AAA TGG GCG GTA GGC GTG
  • 3′ sequencing primer CAG GAA ACA GCT ATG ACC
    • (Common Sequencing Primers)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pCMV-DRD2-V2tail-TevN-BLITz1-TetR-VP16 was a gift from Hyungbae Kwon (Addgene plasmid # 89870 ; http://n2t.net/addgene:89870 ; RRID:Addgene_89870)

  • For your References section:

    Temporally precise labeling and control of neuromodulatory circuits in the mammalian brain. Lee D, Creed M, Jung K, Stefanelli T, Wendler DJ, Oh WC, Mignocchi NL, Luscher C, Kwon HB. Nat Methods. 2017 May;14(5):495-503. doi: 10.1038/nmeth.4234. Epub 2017 Apr 3. 10.1038/nmeth.4234 PubMed 28369042
