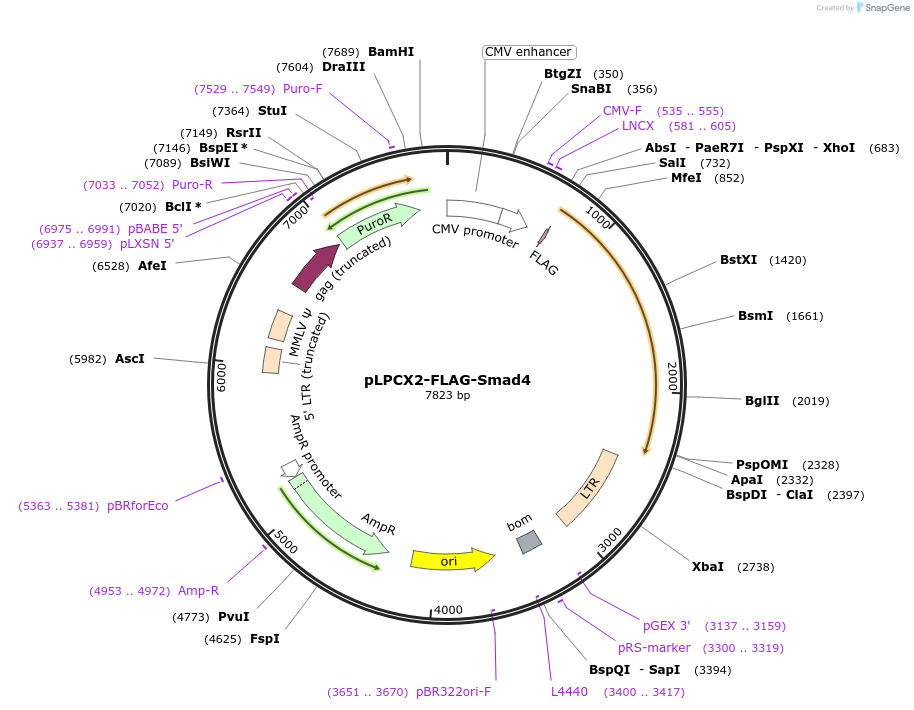

pLPCX2-FLAG-Smad4
(Plasmid #89834)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 89834 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

Backbone

  • Vector backbone
    pLNCX2
  • Backbone manufacturer
    Clontech
  • Backbone size w/o insert (bp) 6100
  • Vector type
    Retroviral
  • Selectable markers
    Puromycin

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    NEB Stable
  • Copy number
    Low Copy

Gene/Insert

  • Gene/Insert name
    SMAD4
  • Species
    H. sapiens (human)
  • Insert Size (bp)
    1672
  • GenBank ID
    NM_005359.5
  • Entrez Gene
    SMAD4 (a.k.a. DPC4, JIP, MADH4, MYHRS)
  • Promoter CMV
  • Tag / Fusion Protein
    • FLAG (N terminal on backbone)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site SalI (not destroyed)
  • 3′ cloning site ClaI (not destroyed)
  • 5′ sequencing primer GG GTCGAC TG gacaatatgtctattacgaatac
  • 3′ sequencing primer GG ATCGAT tcagtctaaaggttgtgggtctg
    • (Common Sequencing Primers)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pLPCX2-FLAG-Smad4 was a gift from Shengyu Yang (Addgene plasmid # 89834 ; http://n2t.net/addgene:89834 ; RRID:Addgene_89834)

  • For your References section:

    GATA3 transcription factor abrogates Smad4 transcription factor-mediated fascin overexpression, invadopodium formation, and breast cancer cell invasion. Sun J, He H, Pillai S, Xiong Y, Challa S, Xu L, Chellappan S, Yang S. J Biol Chem. 2013 Dec 27;288(52):36971-82. doi: 10.1074/jbc.M113.506535. Epub 2013 Nov 14. 10.1074/jbc.M113.506535 PubMed 24235142
