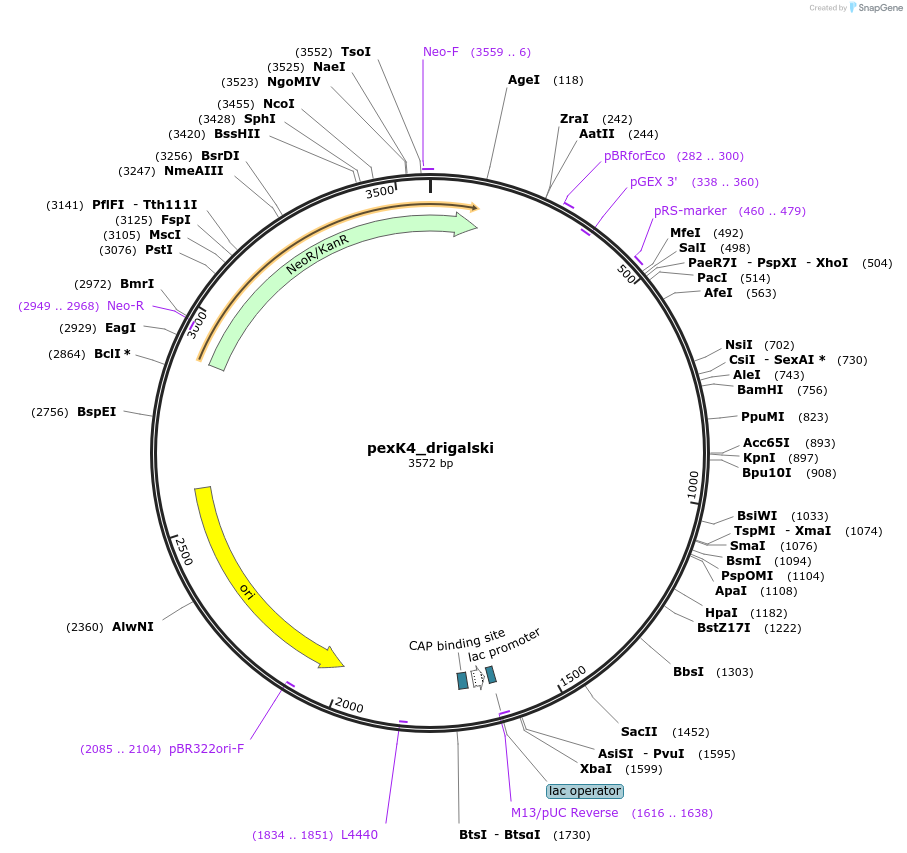

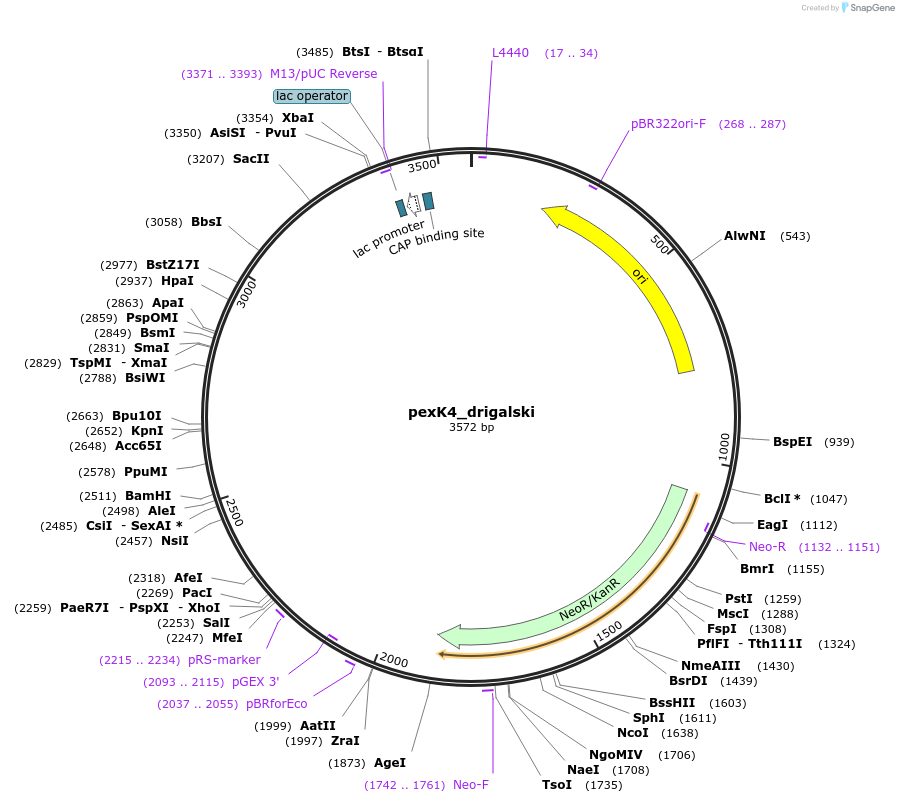

pexK4_drigalski
(Plasmid #89676)

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 89676 Standard format: Plasmid sent in bacteria as agar stab 1 $85

Backbone

  • Vector backbone
    pEX-K4
  • Backbone manufacturer
    Eurofins
  • Vector type
    Unspecified

Growth in Bacteria

  • Bacterial Resistance(s)
    Kanamycin, 50 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    drigalski
  • Species
    Synthetic
  • Insert Size (bp)
    1065

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site unknown (unknown if destroyed)
  • 3′ cloning site unknown (unknown if destroyed)
  • 5′ sequencing primer ggagcagacaagcccgtcagg
  • 3′ sequencing primer caggctttacactttatgcttccggc
  • (Common Sequencing Primers)

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pexK4_drigalski was a gift from Hendrik Dietz (Addgene plasmid # 89676 ; http://n2t.net/addgene:89676 ; RRID:Addgene_89676)
  • For your References section:

    Self-assembly of genetically encoded DNA-protein hybrid nanoscale shapes. Praetorius F, Dietz H. Science. 2017 Mar 24;355(6331). pii: eaam5488. doi: 10.1126/science.aam5488. 10.1126/science.aam5488 PubMed 28336611
