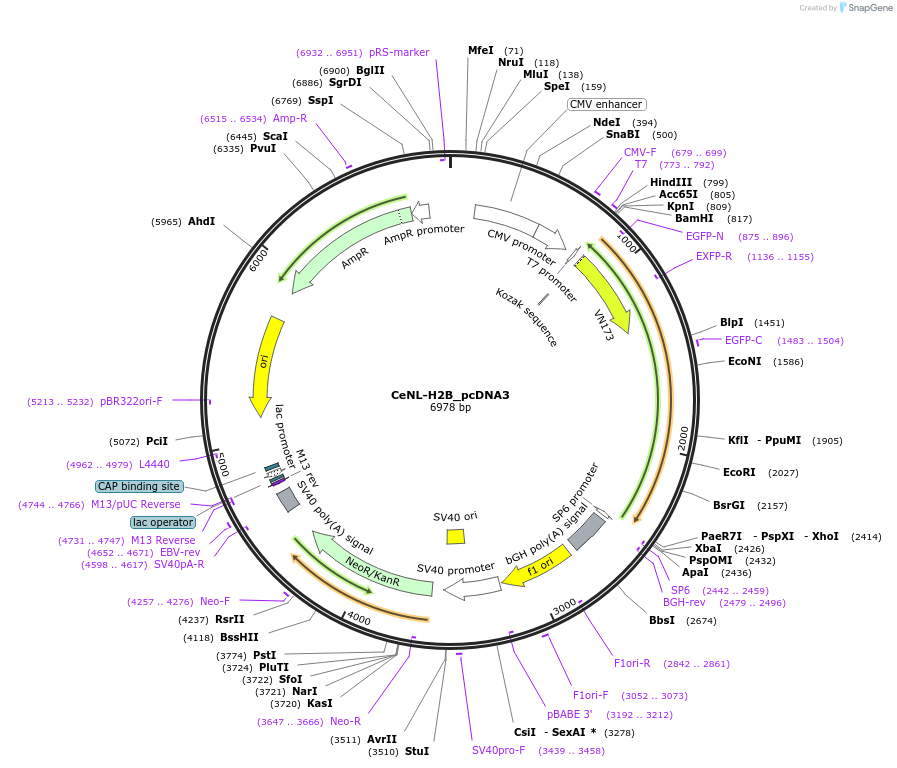

CeNL-H2B_pcDNA3
(Plasmid #89511)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 89511 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

Backbone

  • Vector backbone
    pcDNA3
  • Backbone manufacturer
    Invitrogen
  • Backbone size w/o insert (bp) 5400
  • Vector type
    Mammalian Expression
  • Selectable markers
    Neomycin (select with G418)

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    CeNL
  • Species
    Synthetic
  • GenBank ID
    LC128714
  • Promoter CMV
  • Tag / Fusion Protein
    • histone 2B (C terminal on insert)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site BamHI (not destroyed)
  • 3′ cloning site EcoRI (not destroyed)
  • 5′ sequencing primer CMV-F
  • 3′ sequencing primer BGHrev
    • (Common Sequencing Primers)

Terms and Licenses

Trademarks:
  • Zeocin® is an InvivoGen trademark.

Depositor Comments

Derived from NanoLuc luciferase

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    CeNL-H2B_pcDNA3 was a gift from Takeharu Nagai (Addgene plasmid # 89511 ; http://n2t.net/addgene:89511 ; RRID:Addgene_89511)

  • For your References section:

    Five colour variants of bright luminescent protein for real-time multicolour bioimaging. Suzuki K, Kimura T, Shinoda H, Bai G, Daniels MJ, Arai Y, Nakano M, Nagai T. Nat Commun. 2016 Dec 14;7:13718. doi: 10.1038/ncomms13718. 10.1038/ncomms13718 PubMed 27966527
