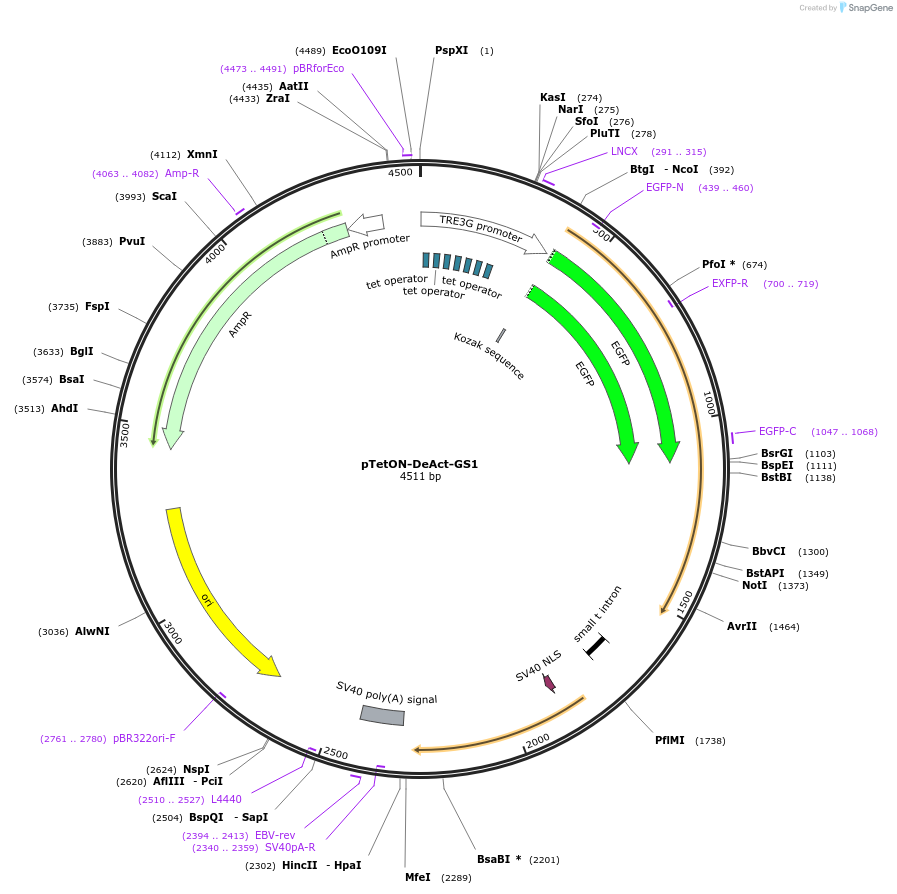

pTetON-DeAct-GS1
(Plasmid #89454)

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 89454 Standard format: Plasmid sent in bacteria as agar stab 1 $85

Backbone

  • Vector backbone
    pTRE3G-luciferase
  • Backbone manufacturer
    Clontech
  • Backbone size w/o insert (bp) 3383
  • Total vector size (bp) 4511
  • Modifications to backbone
    Removed luciferase, replaced with EGFP-GS1
  • Vector type
    Mammalian Expression

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    DeAct-GS1
  • Alt name
    Gelsolin segment 1
  • Species
    H. sapiens (human)
  • Insert Size (bp)
    372
  • Mutation
    Truncation spanning cytoplasmic Gsn amino acids 53-176
  • GenBank ID
    NM_000177.4
  • Entrez Gene
    GSN (a.k.a. ADF, AGEL)
  • Promoter TRE3G
  • Tag / Fusion Protein
    • EGFP (N terminal on insert)

Cloning Information

  • Cloning method Ligation Independent Cloning
  • 5′ sequencing primer gcagagctcgtttagtgaa
  • 3′ sequencing primer CATCAGTTCCATAGGTTG
  • (Common Sequencing Primers)

Resource Information

Terms and Licenses

Trademarks:
  • Zeocin® is an InvivoGen trademark.

Depositor Comments

Uses Clontech 3rd generation Tet-responsive promoter; also requires Tet-On 3G transactivator protein

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pTetON-DeAct-GS1 was a gift from Brad Zuchero (Addgene plasmid # 89454 ; http://n2t.net/addgene:89454 ; RRID:Addgene_89454)
  • For your References section:

    DeActs: genetically encoded tools for perturbing the actin cytoskeleton in single cells. Harterink M, da Silva ME, Will L, Turan J, Ibrahim A, Lang AE, van Battum EY, Pasterkamp RJ, Kapitein LC, Kudryashov D, Barres BA, Hoogenraad CC, Zuchero JB. Nat Methods. 2017 Apr 10. doi: 10.1038/nmeth.4257. 10.1038/nmeth.4257 PubMed 28394337
