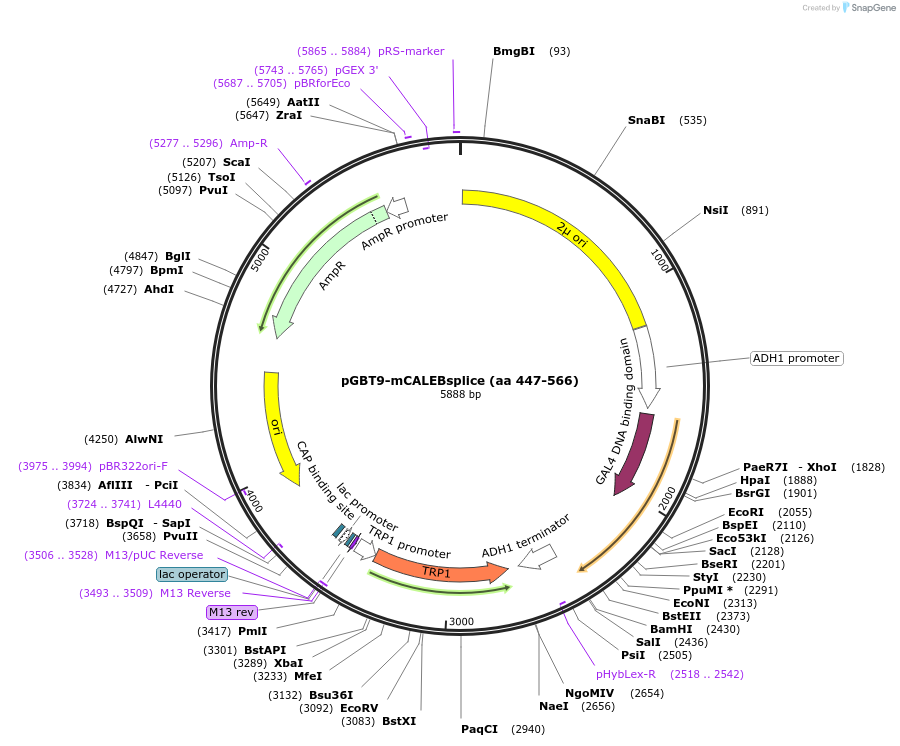

pGBT9-mCALEBsplice (aa 447-566)
(Plasmid #89405)

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 89405 Standard format: Plasmid sent in bacteria as agar stab 1 $85

Backbone

  • Vector backbone
    pGBT9
  • Backbone manufacturer
    Clontech
  • Vector type
    Yeast Expression
  • Selectable markers
    TRP1

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    CSPG5
  • Alt name
    Chondroitin Sulfate Proteoglycan 5
  • Alt name
    CALEB
  • Species
    M. musculus (mouse)
  • Entrez Gene
    Cspg5 (a.k.a. Caleb, Ngc)
  • Promoter ADH1
  • Tag / Fusion Protein
    • GAL4 DBD (N terminal on backbone)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site EcoRI (unknown if destroyed)
  • 3′ cloning site BamHI (unknown if destroyed)
  • 5′ sequencing primer Gal4-N-term
  • (Common Sequencing Primers)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pGBT9-mCALEBsplice (aa 447-566) was a gift from Fritz Rathjen (Addgene plasmid # 89405 ; http://n2t.net/addgene:89405 ; RRID:Addgene_89405)
