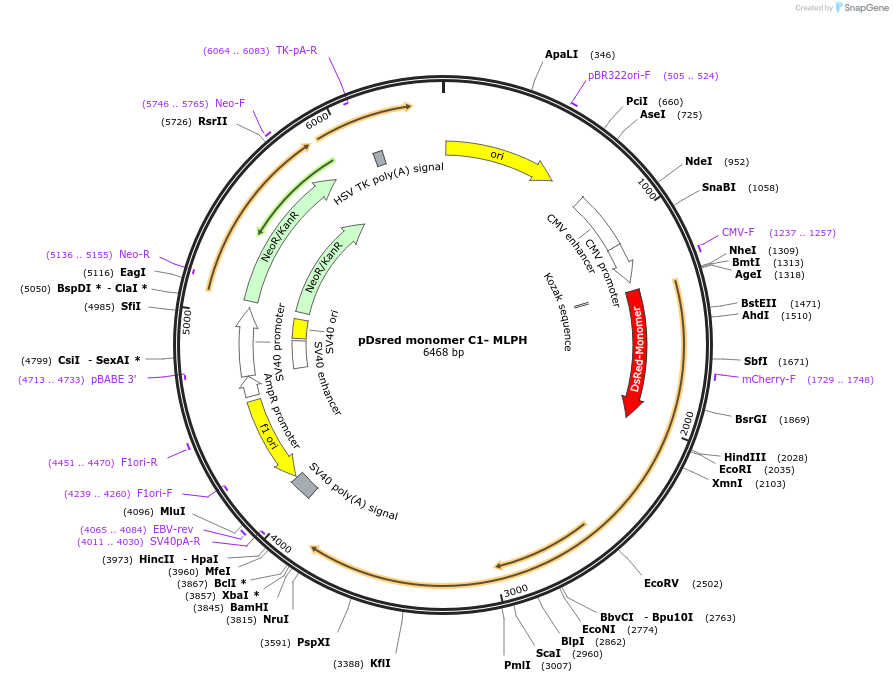

pDsred monomer C1- MLPH
(Plasmid #89236)

• Purpose: Expression of Dsred-tagged human Melanophilin in mammalian cells
• Depositing Lab: William Gahl
• Publication: Westbroek et al Mol Genet Metab. 2008 Jun;94(2):248-54. doi: 10.1016/j.ymgme.2008.02.009. Epub 2008 Apr 7.

Backbone

• Vector backbone: pDsRed-Monomer-C1
• Backbone manufacturer: Clontech
• Backbone size w/o insert (bp): 4700
• Total vector size (bp): 6500
• Vector type: Mammalian Expression
• Selectable markers: Neomycin (select with G418)

Growth in Bacteria

• Bacterial Resistance(s): Kanamycin, 50 μg/mL
• Growth Temperature: 37°C
• Growth Strain(s): DH5alpha
• Copy number: High Copy

Gene/Insert

• Gene/Insert name: Human Melanophilin
• Species: H. sapiens (human)
• Insert Size (bp): 1800
• Mutation: wild type
• GenBank ID: BC001653.2
• Entrez Gene: MLPH (a.k.a. SLAC2-A)
• Promoter: CMV
• Tag / Fusion Protein:
  • Dsred monomer (C terminal on backbone)

Cloning Information

• Cloning method: Restriction Enzyme
• 5′ cloning site: EcoRI (not destroyed)
• 3′ cloning site: BamHI (not destroyed)
• 5′ sequencing primer: 5'-AGCTGGACATCACCAACCACAACG-3'

Resource Information

• Article Citing this Plasmid:
  • 1 Reference

Terms and Licenses

• Academic/Nonprofit Terms:
  • UBMTA
  • Takara Bio Limited Use Label License (formerly Clontech)
• Industry Terms:
  • Not Available to Industry
