FLAG TBC1D13
(Plasmid #87953)

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 87953 Standard format: Plasmid sent in bacteria as agar stab 1 $85

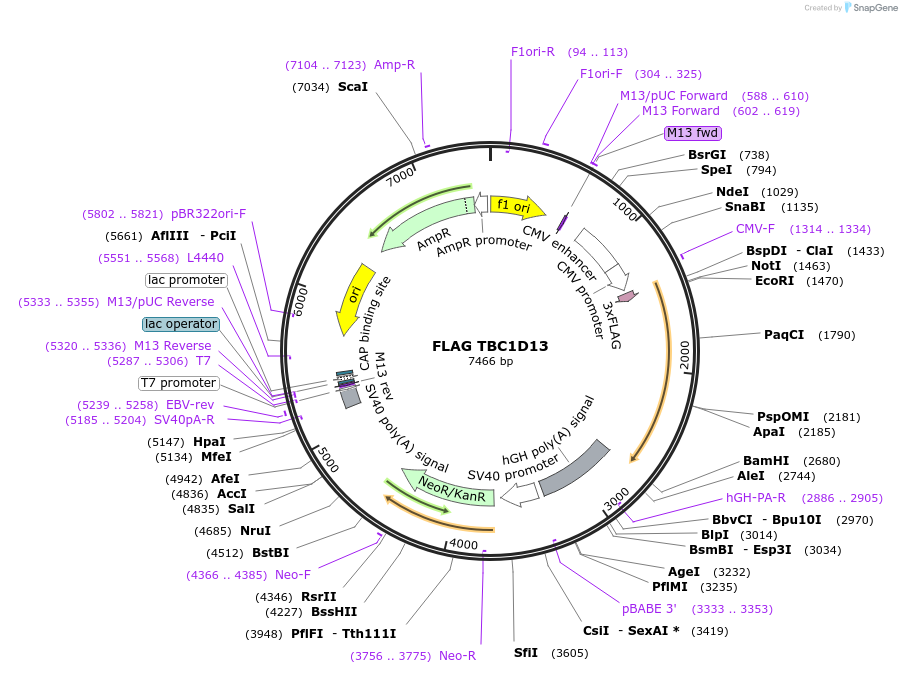

Backbone

  • Vector backbone
    p3xFLAG CMV10
  • Backbone size w/o insert (bp) 6400
  • Total vector size (bp) 7600
  • Modifications to backbone
    This vector has undergone site-directed mutagenesis to bring the TBC1D13 insert into frame with the tag. The EcoRI site was modified by inserting a base in this sequence and hence can no longer be digest with this enzyme
  • Vector type
    Mammalian Expression

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    Unknown

Gene/Insert

  • Gene/Insert name
    TBC1D13
  • Alt name
    TBC1 domain family member 13
  • Species
    M. musculus (mouse)
  • Insert Size (bp)
    1200
  • Entrez Gene
    Tbc1d13 (a.k.a. 2600014A06Rik, BC025586)
  • Tag / Fusion Protein
    • FLAG (N terminal on insert)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site EcoRI (destroyed during cloning)
  • 3′ cloning site BamHI (not destroyed)
  • 5′ sequencing primer CMV_F
  • (Common Sequencing Primers)

Resource Information

  • A portion of this plasmid was derived from a plasmid made by
    p3xFLAG-CMV19 from Sigma. TBC1D13 was originally cloned by the depositing scientist.

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    FLAG TBC1D13 was a gift from David James (Addgene plasmid # 87953 ; http://n2t.net/addgene:87953 ; RRID:Addgene_87953)
  • For your References section:

    TBC1D13 is a RAB35 specific GAP that plays an important role in GLUT4 trafficking in adipocytes. Davey JR, Humphrey SJ, Junutula JR, Mishra AK, Lambright DG, James DE, Stockli J. Traffic. 2012 Oct;13(10):1429-41. doi: 10.1111/j.1600-0854.2012.01397.x. Epub 2012 Jul 29. 10.1111/j.1600-0854.2012.01397.x PubMed 22762500
