tet-pLKO shMKP7.v2 puro
(Plasmid #87795)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 87795 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

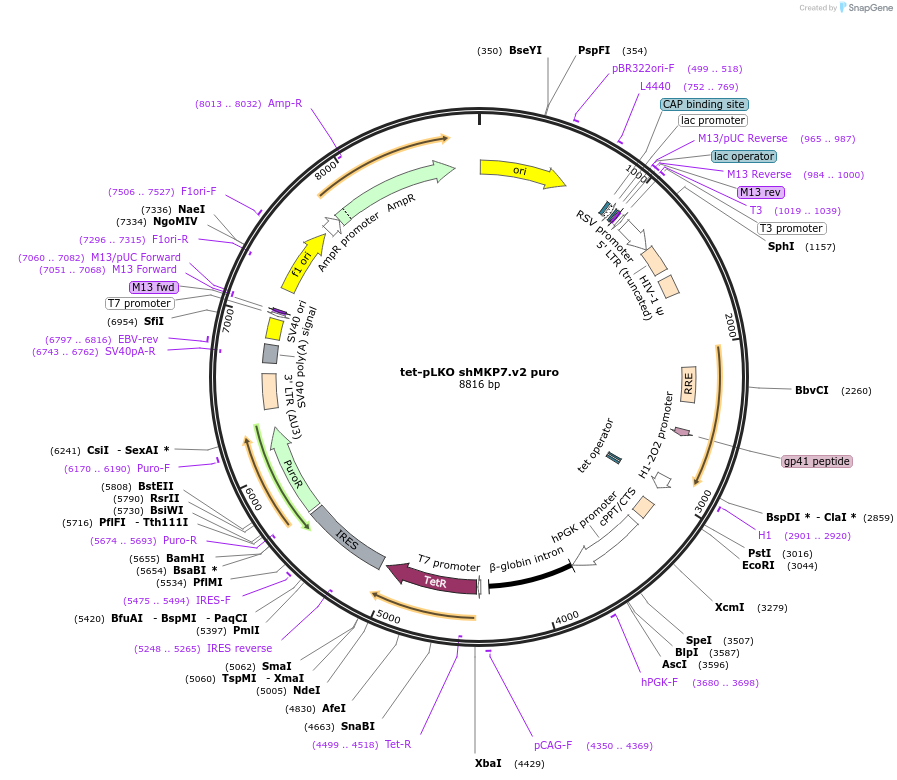

Backbone

  • Vector backbone
    Tet PLKO puro
  • Backbone manufacturer
    Plasmid #21915
  • Backbone size w/o insert (bp) 10633
  • Total vector size (bp) 8816
  • Vector type
    Mammalian Expression, Lentiviral
  • Selectable markers
    Puromycin

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    30°C
  • Growth Strain(s)
    NEB Stable
  • Copy number
    Low Copy

Gene/Insert

  • Gene/Insert name
    shMKP7
  • gRNA/shRNA sequence
    GCAACAGGACAAAGTGTTAAT
  • Species
    H. sapiens (human)
  • GenBank ID
    NM_030640.2
  • Entrez Gene
    DUSP16 (a.k.a. MKP-7, MKP7)
  • Promoter TRE tight

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site AgeI (unknown if destroyed)
  • 3′ cloning site EcoRI (unknown if destroyed)
  • 5′ sequencing primer GGCAGGGATATTCACCATTATCGTTTCAGA
    • (Common Sequencing Primers)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    tet-pLKO shMKP7.v2 puro was a gift from Kevin Janes (Addgene plasmid # 87795 ; http://n2t.net/addgene:87795 ; RRID:Addgene_87795)

  • For your References section:

    Profiling Subcellular Protein Phosphatase Responses to Coxsackievirus B3 Infection of Cardiomyocytes. Shah M, Smolko CM, Kinicki S, Chapman ZD, Brautigan DL, Janes KA. Mol Cell Proteomics. 2017 Apr;16(4 suppl 1):S244-S262. doi: 10.1074/mcp.O116.063487. Epub 2017 Feb 7. 10.1074/mcp.O116.063487 PubMed 28174228
