Lyn-FLINC-EKAR1(TA)
(Plasmid #87708)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 87708 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

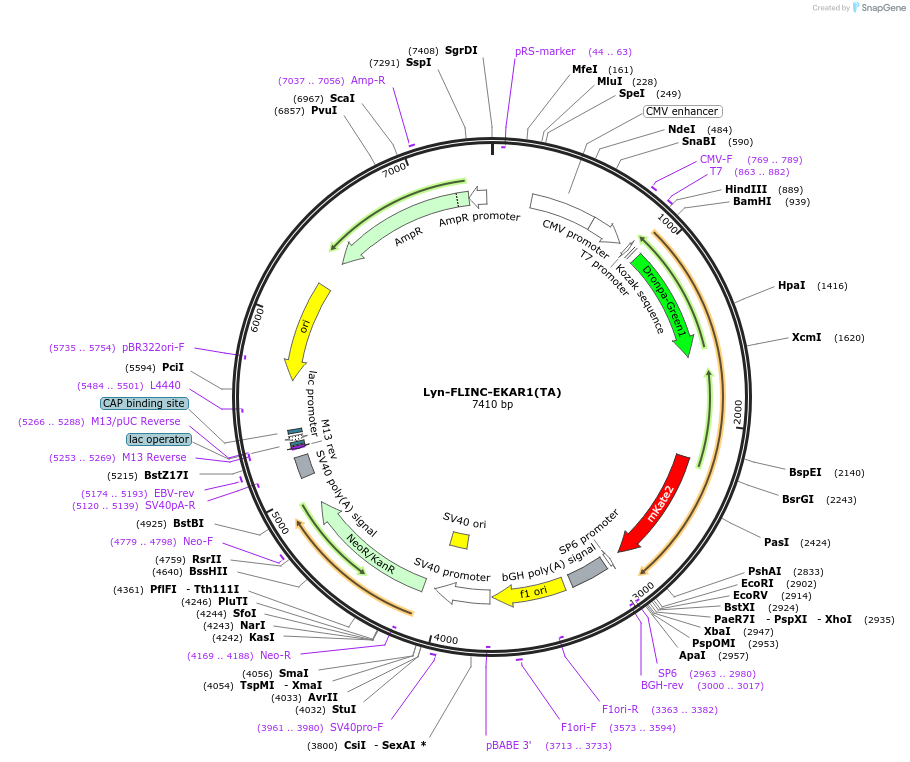

Backbone

  • Vector backbone
    pcDNA3
  • Backbone manufacturer
    Invitrogen
  • Backbone size w/o insert (bp) 5500
  • Total vector size (bp) 7410
  • Vector type
    Mammalian Expression
  • Selectable markers
    Neomycin (select with G418)

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    Lyn-FLINC-EKAR1(TA)
  • Alt name
    Lyn-Dronpa-WW-EV-ERKsub(TA)-TagRFPT
  • Species
    S. cerevisiae (budding yeast), Synthetic
  • Insert Size (bp)
    1956
  • Mutation
    Target Thr residue in substrate domain mutated to Ala.
  • Promoter CMV
  • Tag / Fusion Protein
    • N-terminal targeting sequence from Lyn kinase (N terminal on insert)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site BamHI (not destroyed)
  • 3′ cloning site EcoRI (not destroyed)
  • 5′ sequencing primer T7 forward
  • 3′ sequencing primer BGH reverse
    • (Common Sequencing Primers)

Resource Information

Terms and Licenses

Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    Lyn-FLINC-EKAR1(TA) was a gift from Jin Zhang (Addgene plasmid # 87708 ; http://n2t.net/addgene:87708 ; RRID:Addgene_87708)

  • For your References section:

    Genetically encoded biosensors for visualizing live-cell biochemical activity at super-resolution. Mo GC, Ross B, Hertel F, Manna P, Yang X, Greenwald E, Booth C, Plummer AM, Tenner B, Chen Z, Wang Y, Kennedy EJ, Cole PA, Fleming KG, Palmer A, Jimenez R, Xiao J, Dedecker P, Zhang J. Nat Methods. 2017 Apr;14(4):427-434. doi: 10.1038/nmeth.4221. Epub 2017 Mar 13. 10.1038/nmeth.4221 PubMed 28288122
