Depositing Lab
-
Publication
-
Sequence Information
Ordering
This material is available to academics and nonprofits only.
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 8768 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 | |
Backbone
-
Vector backbonepcDNA3
-
Backbone manufacturerInvitrogen
- Backbone size w/o insert (bp) 5400
-
Vector typeMammalian Expression
-
Selectable markersNeomycin (select with G418)
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)XL1 Blue
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert nameBcl-2
-
SpeciesH. sapiens (human)
-
Insert Size (bp)720
-
GenBank IDNM_000633
-
Entrez GeneBCL2 (a.k.a. Bcl-2, PPP1R50)
Cloning Information
- Cloning method Restriction Enzyme
- 5′ cloning site EcoRI (destroyed during cloning)
- 3′ cloning site EcoRI (destroyed during cloning)
- 5′ sequencing primer CMV-F
- 3′ sequencing primer BGH-rev (Common Sequencing Primers)
Resource Information
-
Articles Citing this Plasmid
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
Depositor Comments
ORF contains SacI, PstI, and BamHI sites sense from T7 direction.
How to cite this plasmid
( Back to top)
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
3336 pcDNA3 Bcl-2 was a gift from Stanley Korsmeyer (Addgene plasmid # 8768 ; http://n2t.net/addgene:8768 ; RRID:Addgene_8768) -
For your References section:
BCL-2 is phosphorylated and inactivated by an ASK1/Jun N-terminal protein kinase pathway normally activated at G(2)/M. Yamamoto K, Ichijo H, Korsmeyer SJ. Mol Cell Biol 1999 Dec;19(12):8469-78. PubMed 10567572

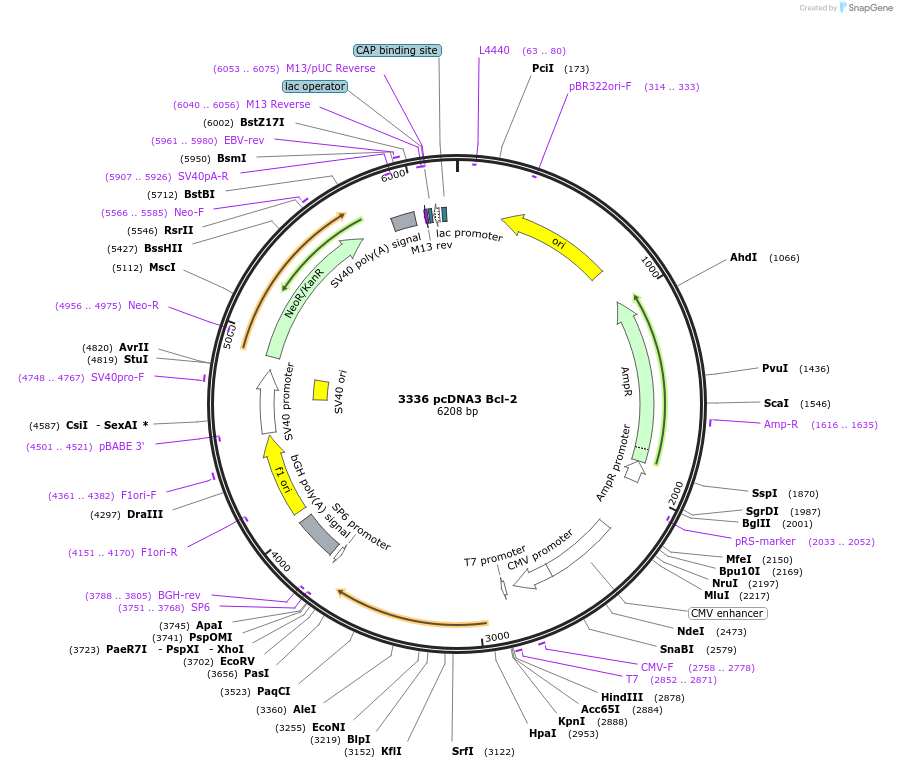

Map uploaded by the depositor.
