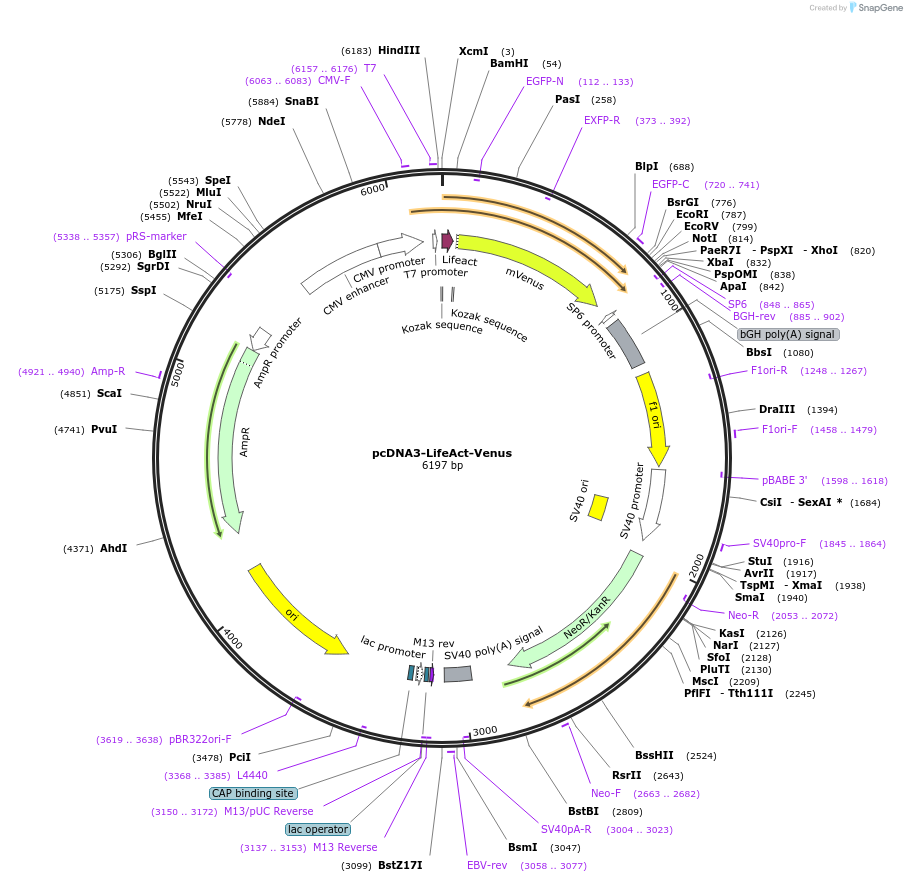

pcDNA3-LifeAct-Venus
(Plasmid #87613)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 87613 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

Backbone

  • Vector backbone
    pcDNA3
  • Backbone manufacturer
    Invitrogen
  • Backbone size w/o insert (bp) 5500
  • Total vector size (bp) 6198
  • Vector type
    Mammalian Expression
  • Selectable markers
    Neomycin (select with G418)

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    LifeAct-Venus
  • Species
    S. cerevisiae (budding yeast), Synthetic
  • Insert Size (bp)
    786
  • Promoter CMV
  • Tag / Fusion Protein
    • 17-aa sequence from Abp140 (aka "Lifeact") (C terminal on insert)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site BamHI (not destroyed)
  • 3′ cloning site EcoRI (not destroyed)
  • 5′ sequencing primer T7 forward
  • 3′ sequencing primer BGH reverse
    • (Common Sequencing Primers)

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pcDNA3-LifeAct-Venus was a gift from Jin Zhang (Addgene plasmid # 87613 ; http://n2t.net/addgene:87613 ; RRID:Addgene_87613)

  • For your References section:

    RefSOFI for Mapping Nanoscale Organization of Protein-Protein Interactions in Living Cells. Hertel F, Mo GC, Duwe S, Dedecker P, Zhang J. Cell Rep. 2016 Jan 12;14(2):390-400. doi: 10.1016/j.celrep.2015.12.036. Epub 2015 Dec 31. 10.1016/j.celrep.2015.12.036 PubMed 26748717
