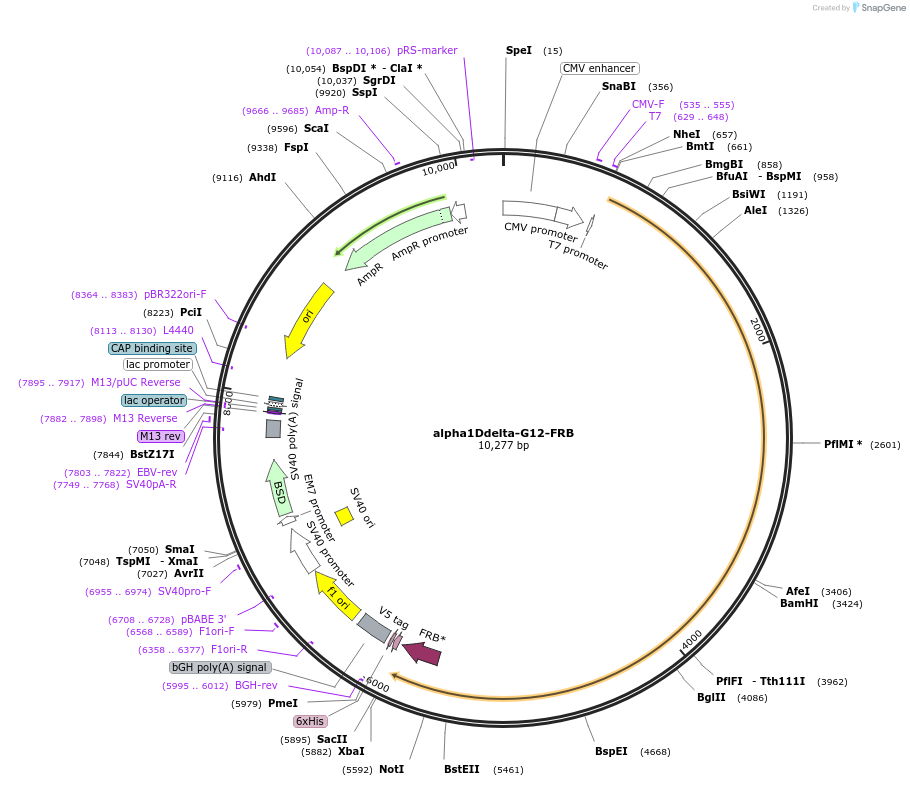

alpha1Ddelta-G12-FRB
(Plasmid #87454)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 87454 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

Backbone

  • Vector backbone
    pcDNA6
  • Backbone size w/o insert (bp) 5069
  • Vector type
    Mammalian Expression

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    Low Copy

Gene/Insert

  • Gene/Insert name
    a1D short variants
  • Species
    R. norvegicus (rat)
  • Insert Size (bp)
    4875
  • Mutation
    delete KYPAKNTTIALQMLERML
  • Entrez Gene
    Cacna1d
  • Promoter CMV
  • Tag / Fusion Protein
    • FRB (C terminal on insert)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site Nhe I (not destroyed)
  • 3′ cloning site Xba I (not destroyed)
  • 5′ sequencing primer CMV-F
    • (Common Sequencing Primers)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.

Depositor Comments

FRB (279 bp)

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    alpha1Ddelta-G12-FRB was a gift from Xiaodong Liu (Addgene plasmid # 87454 ; http://n2t.net/addgene:87454 ; RRID:Addgene_87454)

  • For your References section:

    Cooperative and acute inhibitionby multiple C-terminal motifs of L-type Ca2+ channels. Liu N, Yang Y, Ge L, Liu M, Colecraft HM, Liu X. Elife. 2017 Jan 6;6. pii: e21989. doi: 10.7554/eLife.21989. 10.7554/eLife.21989 PubMed 28059704
