Addgene

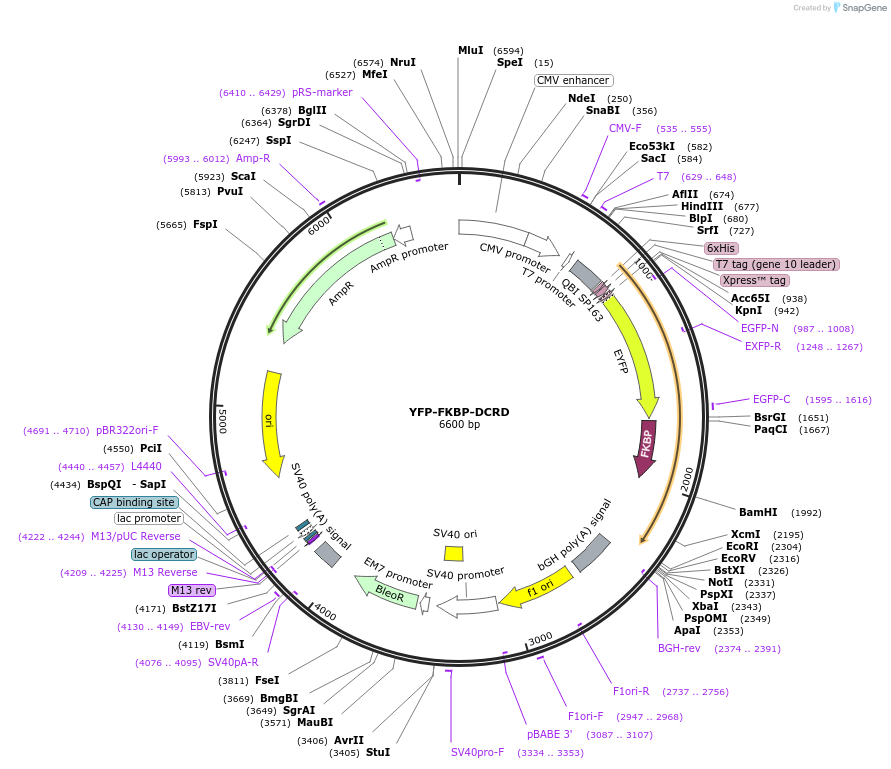

YFP-FKBP-DCRD
(Plasmid #87453)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 87453 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

Backbone

  • Vector backbone
    pcDNA4
  • Backbone size w/o insert (bp) 5242
  • Vector type
    Mammalian Expression

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    DCRD (distal C-terminal regulatory domain)
  • Species
    H. sapiens (human)
  • Insert Size (bp)
    303
  • Entrez Gene
    CACNA1F (a.k.a. AIED, COD3, COD4, CORDX, CORDX3, CSNB2, CSNB2A, CSNBX2, Cav1.4, Cav1.4alpha1, JM8, JMC8, OA2)
  • Promoter CMV
  • Tags / Fusion Proteins
    • FKBP (N terminal on insert)
    • 6xHis-T7 (N terminal on backbone)
    • YFP (N terminal on insert)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site Kpn I (not destroyed)
  • 3′ cloning site Eco RI (not destroyed)
  • 5′ sequencing primer CMV-F
    • (Common Sequencing Primers)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.

Depositor Comments

FKBP (324 bp) (protein ID AAA58472)

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    YFP-FKBP-DCRD was a gift from Xiaodong Liu (Addgene plasmid # 87453 ; http://n2t.net/addgene:87453 ; RRID:Addgene_87453)

  • For your References section:

    Cooperative and acute inhibitionby multiple C-terminal motifs of L-type Ca2+ channels. Liu N, Yang Y, Ge L, Liu M, Colecraft HM, Liu X. Elife. 2017 Jan 6;6. pii: e21989. doi: 10.7554/eLife.21989. 10.7554/eLife.21989 PubMed 28059704
