pPD1cR
(Plasmid #86970)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 86970 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

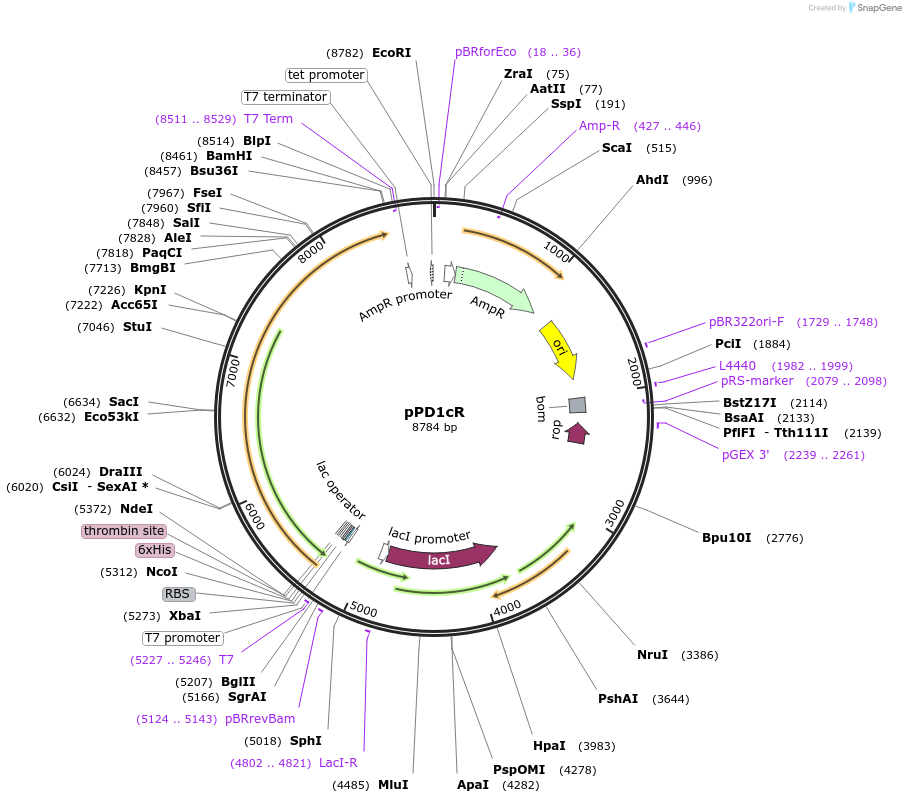

Backbone

  • Vector backbone
    pET-15b(+)
  • Backbone manufacturer
    Novagen
  • Backbone size w/o insert (bp) 5700
  • Total vector size (bp) 8787
  • Modifications to backbone
    A SapI recognition site (GAAGAGC) was modified to GTTGAGC
  • Vector type
    Bacterial Expression

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Growth instructions
    Supplement with 1% glucose is recommended to suppress leaky expression
  • Copy number
    Low Copy

Gene/Insert

  • Gene/Insert name
    PCNA1 variant (G108C) fused to phosphite dehydrogenase and putidaredoxin reductase
  • Alt name
    PTDH-PCNA1G108C-PdR
  • Species
    Synthetic; Pseudomonas; Sulfolobus
  • Insert Size (bp)
    3087
  • Mutation
    E175A/A176R in PTDH, G108C in PCNA1
  • GenBank ID
    AAA25758.1 WP_009988793.1
  • Promoter T7 promoter
  • Tag / Fusion Protein
    • His6 tag (N terminal on backbone)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site NdeI (not destroyed)
  • 3′ cloning site BamHI (not destroyed)
  • 5′ sequencing primer T7
  • 3′ sequencing primer T7 Terminal
    • (Common Sequencing Primers)

Resource Information

  • A portion of this plasmid was derived from a plasmid made by
    Masahiro Goto, Kyushu University

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pPD1cR was a gift from Teruyuki Nagamune (Addgene plasmid # 86970 ; http://n2t.net/addgene:86970 ; RRID:Addgene_86970)

  • For your References section:

    Supramolecular protein assembly supports immobilization of a cytochrome P450 monooxygenase system as water-insoluble gel. Tan CY, Hirakawa H, Nagamune T. Sci Rep. 2015 Mar 3;5:8648. doi: 10.1038/srep08648. 10.1038/srep08648 PubMed 25733255
