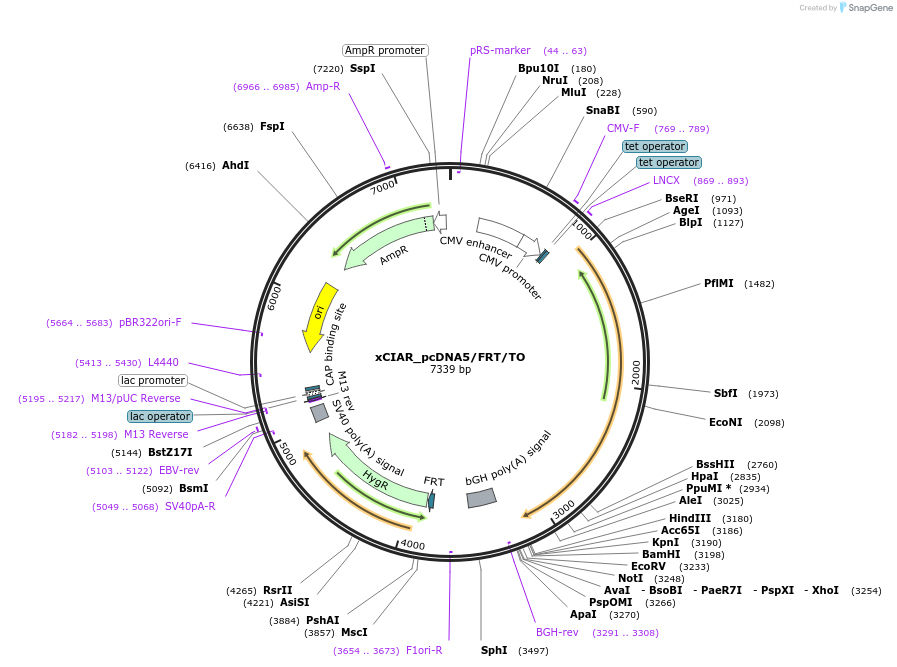

xCIAR_pcDNA5/FRT/TO
(Plasmid #86504)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 86504 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

Backbone

  • Vector backbone
    pcDNA5/FRT/TO
  • Backbone manufacturer
    Invitrogen
  • Backbone size w/o insert (bp) 5137
  • Total vector size (bp) 7339
  • Vector type
    Mammalian Expression ; FRT
  • Selectable markers
    Hygromycin

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    xCIAR
  • Alt name
    xS.17.3
  • Alt name
    inactive control Chemically Inducible Activator of RAS
  • Species
    H. sapiens (human)
  • Insert Size (bp)
    2202
  • Mutation
    F929A and T968L in SOScat
  • Entrez Gene
    SOS1 (a.k.a. GF1, GGF1, GINGF, HGF, NS4, SOS-1)
  • Promoter CMV (tet operator)

Cloning Information

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    xCIAR_pcDNA5/FRT/TO was a gift from Dustin Maly (Addgene plasmid # 86504 ; http://n2t.net/addgene:86504 ; RRID:Addgene_86504)

  • For your References section:

    A computationally engineered RAS rheostat reveals RAS-ERK signaling dynamics. Rose JC, Huang PS, Camp ND, Ye J, Leidal AM, Goreshnik I, Trevillian BM, Dickinson MS, Cunningham-Bryant D, Debnath J, Baker D, Wolf-Yadlin A, Maly DJ. Nat Chem Biol. 2016 Nov 21. doi: 10.1038/nchembio.2244. 10.1038/nchembio.2244 PubMed 27870838
