CFFΔC-Myc
(Plasmid #86060)

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 86060 Standard format: Plasmid sent in bacteria as agar stab 1 $85

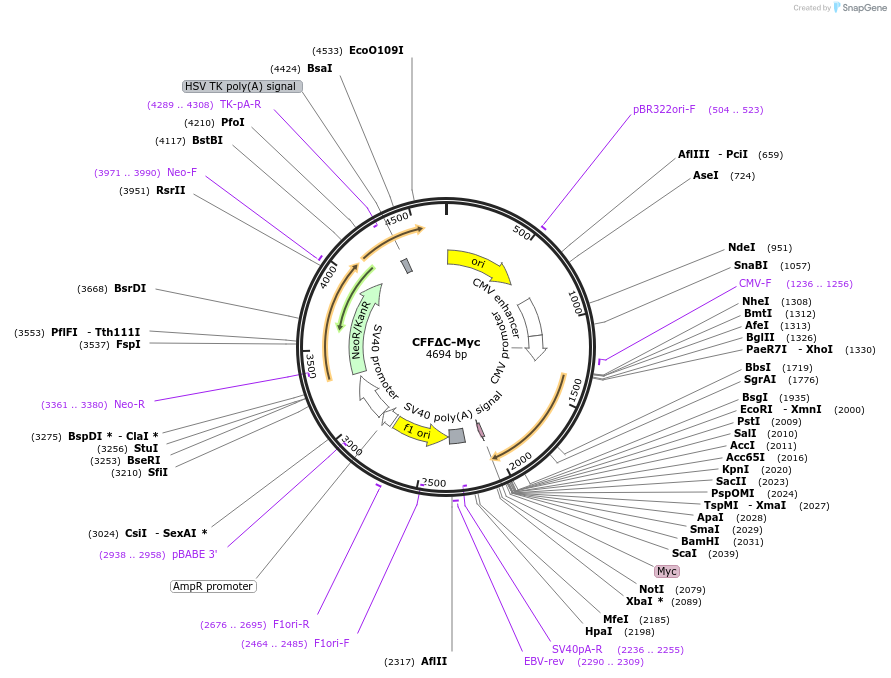

Backbone

  • Vector backbone
    pMyc-N1
  • Backbone manufacturer
    V Madugula (J Cell Sci. 2016)
  • Backbone size w/o insert (bp) 4100
  • Total vector size (bp) 4694
  • Vector type
    Bacterial Expression
  • Selectable markers
    Neomycin (select with G418)

Growth in Bacteria

  • Bacterial Resistance(s)
    Kanamycin, 50 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    Fibrocystin
  • Species
    M. musculus (mouse)
  • Insert Size (bp)
    663
  • Mutation
    contains CD8a luminal and transmembrane domains along with amino acids 3849-3887 of fibrocystin
  • Entrez Gene
    Pkhd1 (a.k.a. FPC, Tigm1)
  • Promoter CMV
  • Tag / Fusion Protein
    • Myc (C terminal on insert)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site XhoI (not destroyed)
  • 3′ cloning site EcoRI (not destroyed)
  • 5′ sequencing primer 5' CGCAAATGGGCGGTAGGCGTG 3'
  • (Common Sequencing Primers)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    CFFΔC-Myc was a gift from Lei Lu (Addgene plasmid # 86060 ; http://n2t.net/addgene:86060 ; RRID:Addgene_86060)
  • For your References section:

    A ternary complex comprising transportin1, Rab8 and the ciliary targeting signal directs proteins to ciliary membranes. Madugula V, Lu L. J Cell Sci. 2016 Oct 15;129(20):3922-3934. Epub 2016 Sep 15. 10.1242/jcs.194019 PubMed 27633000
