PurposeP. falciparum integration plasmid to fuse endogenous genes with tags (double 2xFKBP tag) using SLI
-
Depositing Lab
-

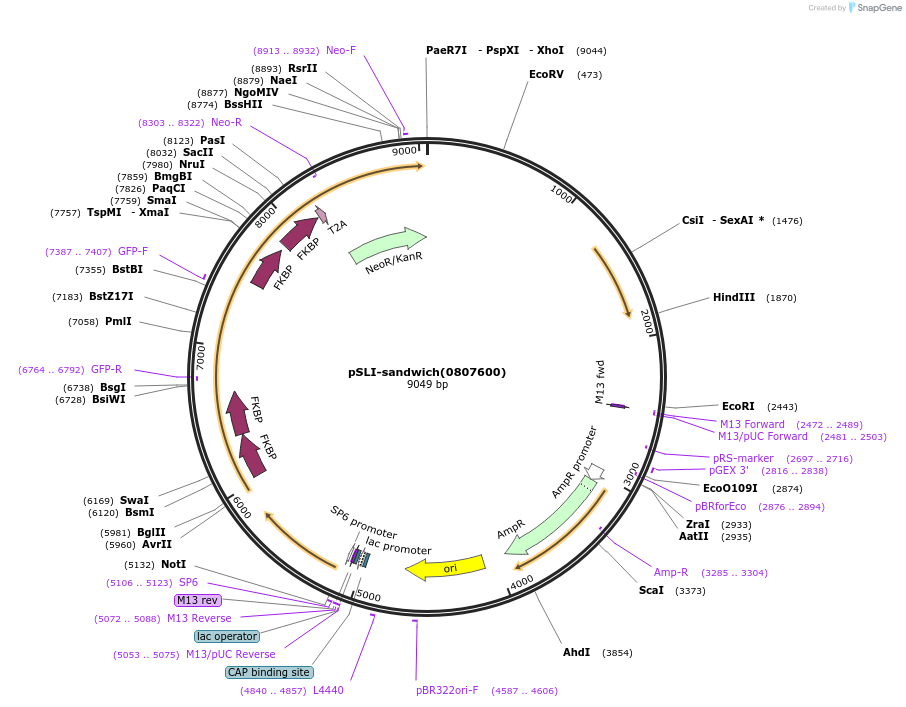

Sequence Information
Ordering
Item | Catalog # | Description | Quantity | Price (USD) | |
---|---|---|---|---|---|
Plasmid | 85790 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 |
Backbone
-
Vector backbonepGEM
-
Vector typeP. falciparum genomic integration
-
Selectable markershuman DHFR
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberUnknown
Gene/Insert
-
Gene/Insert namePF3D0807600 targeting region, 2xFKBP-GFP-2xFKBP-2TA-Neo-R
-
SpeciesP. falciparum
- Promoter none
-
Tag
/ Fusion Protein
- 2xFKBP, GFP
Cloning Information
- Cloning method Restriction Enzyme
- 5′ cloning site NotI (unknown if destroyed)
- 3′ cloning site AvrII (unknown if destroyed)
- 5′ sequencing primer pARLfw
- 3′ sequencing primer GFP-85rv (Common Sequencing Primers)
Resource Information
-
Article Citing this Plasmid
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pSLI-sandwich(0807600) was a gift from Tobias Spielmann (Addgene plasmid # 85790 ; http://n2t.net/addgene:85790 ; RRID:Addgene_85790) -
For your References section:
A genetic system to study Plasmodium falciparum protein function. Birnbaum J, Flemming S, Reichard N, Soares AB, Mesen-Ramirez P, Jonscher E, Bergmann B, Spielmann T. Nat Methods. 2017 Mar 13. doi: 10.1038/nmeth.4223. 10.1038/nmeth.4223 PubMed 28288121
