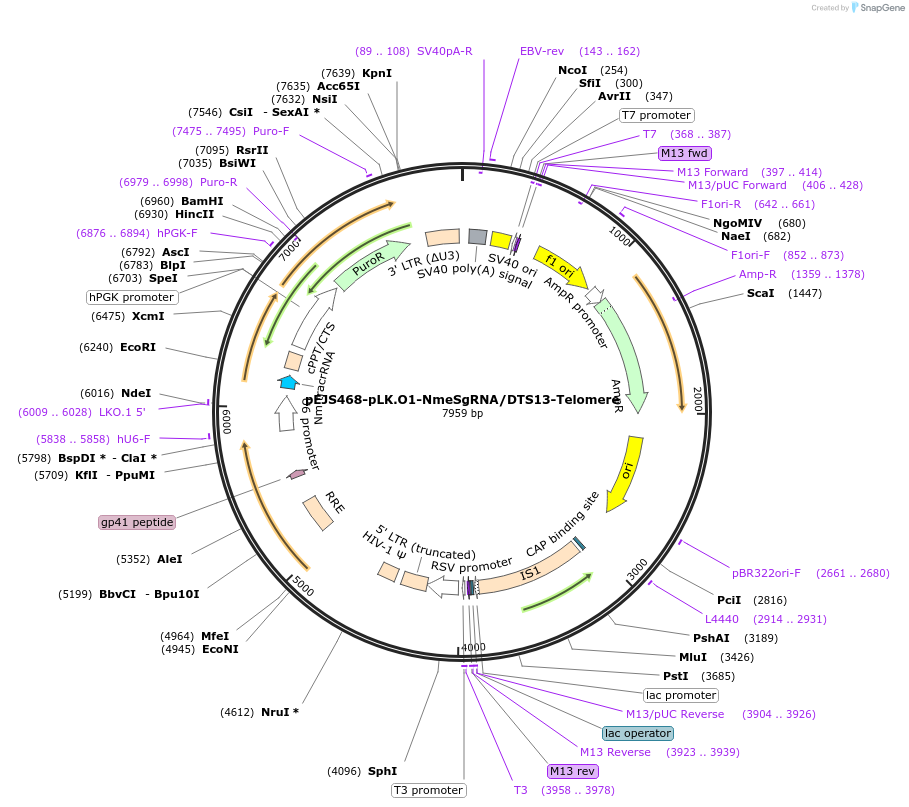

pEJS468-pLK.O1-NmeSgRNA/DTS13-Telomere
(Plasmid #85714)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 85714 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

Backbone

  • Vector backbone
    pLKO.1
  • Total vector size (bp) 7182
  • Vector type
    Mammalian Expression, Lentiviral, CRISPR
  • Selectable markers
    Puromycin

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    NEB Stable
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    telomere sgRNA
  • gRNA/shRNA sequence
    TTAGGGTTAGGGTTAGGGTTAGGG
  • Species
    H. sapiens (human)
  • Promoter U6

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site BfuAI (destroyed during cloning)
  • 3′ cloning site BfuAI (destroyed during cloning)
  • 5′ sequencing primer GCATATACGATACAAGGCTGT
    • (Common Sequencing Primers)

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pEJS468-pLK.O1-NmeSgRNA/DTS13-Telomere was a gift from Erik Sontheimer (Addgene plasmid # 85714 ; http://n2t.net/addgene:85714 ; RRID:Addgene_85714)

  • For your References section:

    Naturally Occurring Off-Switches for CRISPR-Cas9. Pawluk A, Amrani N, Zhang Y, Garcia B, Hidalgo-Reyes Y, Lee J, Edraki A, Shah M, Sontheimer EJ, Maxwell KL, Davidson AR. Cell. 2016 Dec 15;167(7):1829-1838.e9. doi: 10.1016/j.cell.2016.11.017. Epub 2016 Dec 8. 10.1016/j.cell.2016.11.017 PubMed 27984730
