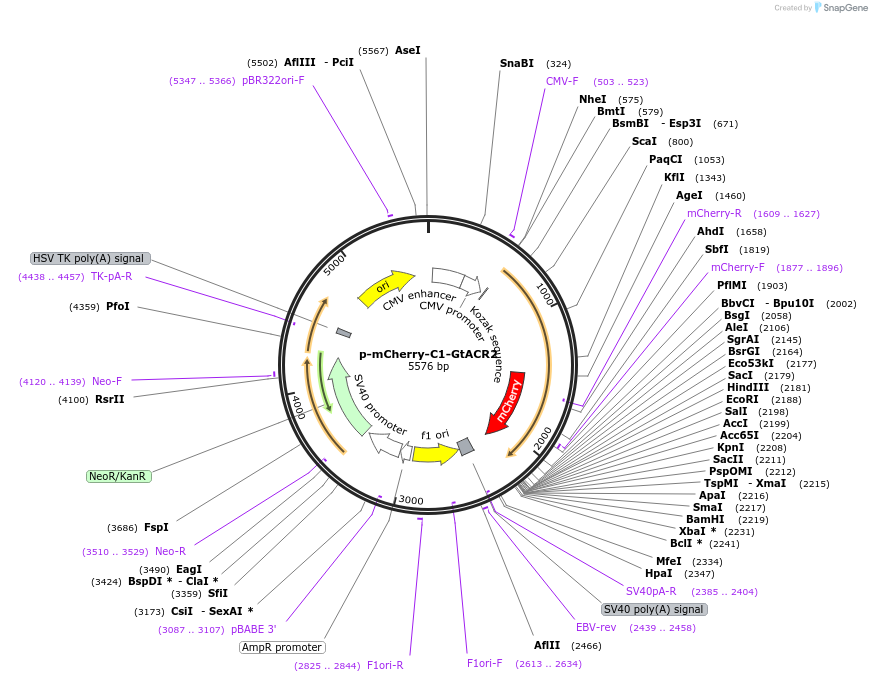

p-mCherry-C1-GtACR2
(Plasmid #85463)

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 85463 Standard format: Plasmid sent in bacteria as agar stab 1 $85

Backbone

  • Vector backbone
    pEGFP-C1
  • Backbone size w/o insert (bp) 4703
  • Total vector size (bp) 5576
  • Modifications to backbone
    EGFP has been replaced by mCherry using AgeI/XhoI (XhoI site destroyed during cloning)
  • Vector type
    Mammalian Expression
  • Selectable markers
    Neomycin (select with G418)

Growth in Bacteria

  • Bacterial Resistance(s)
    Kanamycin, 50 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    XL1 Blue
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    Synthetic construct ACR2 gene
  • Alt name
    GtACR2
  • Species
    Synthetic; Guillardia theta
  • Insert Size (bp)
    873
  • GenBank ID
    KP171709.1
  • Promoter CMV (+enhancer)
  • Tag / Fusion Protein
    • mCherry (C terminal on insert)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site NheI (not destroyed)
  • 3′ cloning site AgeI (not destroyed)
  • 5′ sequencing primer EGFP-N1-F: GAGGTCTATATAAGCAGAGC or CMV-F: GCAAATGGGCGGTAGGCGT
  • 3′ sequencing primer EGFP-C1-R: AACCATTATAAGCTGCAATAAAC
  • (Common Sequencing Primers)

Resource Information

Terms and Licenses

Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    p-mCherry-C1-GtACR2 was a gift from Peter Hegemann (Addgene plasmid # 85463 ; http://n2t.net/addgene:85463 ; RRID:Addgene_85463)
  • For your References section:

    Identification of a Natural Green Light Absorbing Chloride Conducting Channelrhodopsin from Proteomonas sulcata. Wietek J, Broser M, Krause BS, Hegemann P. J Biol Chem. 2016 Feb 19;291(8):4121-7. doi: 10.1074/jbc.M115.699637. Epub 2016 Jan 6. 10.1074/jbc.M115.699637 PubMed 26740624
