pAM5082
(Plasmid
#85121)
-
PurposePkaiB-kaiC-ecfp expressed from NSII-Gm vector constructed by seamless assembly. Fusion expressed as full length fusion protein at WT levels but is 5hr long period. Used only for co-localization exp
-
Depositing Lab
-

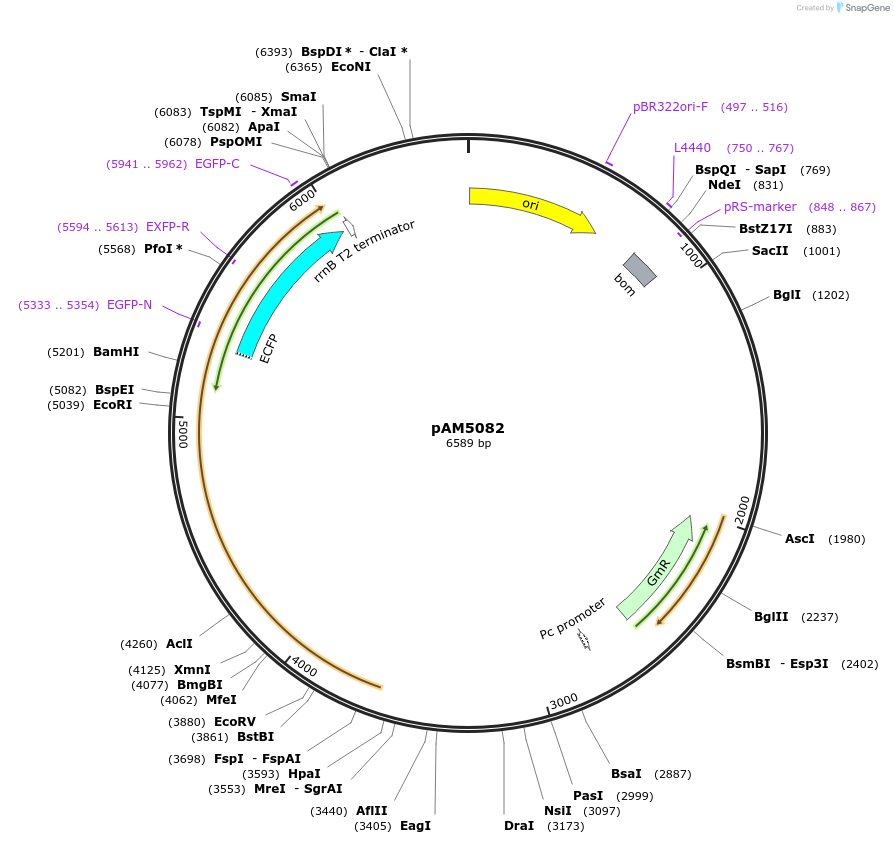

Sequence Information
Ordering
This material is available to academics and nonprofits only.
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 85121 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 | |
Backbone
-
Vector backbonePkaiB-kaiC-ecfp expressed from NS2 vector with Gm resistance constructed by seamless assembly.
- Total vector size (bp) 6590
-
Vector typeBacterial Expression
Growth in Bacteria
-
Bacterial Resistance(s)Gentamicin, 10 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberUnknown
Gene/Insert
-
Gene/Insert namePkaiB-KaiC-ECFP
-
SpeciesSynechoccus elongatus PCC 7942
-
Insert Size (bp)2373
-
Tag
/ Fusion Protein
- ECFP (C terminal on insert)
Resource Information
-
Supplemental Documents
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
How to cite this plasmid
( Back to top)
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pAM5082 was a gift from Susan Golden (Addgene plasmid # 85121 ; http://n2t.net/addgene:85121 ; RRID:Addgene_85121) -
For your References section:
Dynamic localization of the cyanobacterial circadian clock proteins. Cohen SE, Erb ML, Selimkhanov J, Dong G, Hasty J, Pogliano J, Golden SS. Curr Biol. 2014 Aug 18;24(16):1836-44. doi: 10.1016/j.cub.2014.07.036. Epub 2014 Aug 7. 10.1016/j.cub.2014.07.036 PubMed 25127213
