Purpose(Empty Backbone) Expresses Cpf1 customizable sgRNA from U6 promoter and puromycin resistance from EF-1a promoter
-
Depositing Lab
-
Sequence Information
Ordering
This material is available to academics and nonprofits only.
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 84752 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 | |
Backbone
-
Vector backboneLentiGuide-Puro(Addgene#:52963)
- Backbone size (bp) 8330
-
Vector typeMammalian Expression, Lentiviral, CRISPR
- Promoter hU6
-
Selectable markersPuromycin
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)NEB Stable
-
Growth instructionsUse SapI digest to check for unwanted recombination of lentiviral plasmid. Only amplify in RecA- bacteria (eg. Stbl3).
-
Copy numberHigh Copy
Cloning Information
- Cloning method Restriction Enzyme
- 5′ sequencing primer hU6-F
- 3′ sequencing primer hGata4-rev (5'-ATTGTGGATGAATACTGCC-3') (Common Sequencing Primers)
Resource Information
-
Supplemental Documents
-
Articles Citing this Plasmid
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
How to cite this plasmid
( Back to top)
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
Lenti_gRNA-Puro was a gift from Hyongbum Kim (Addgene plasmid # 84752 ; http://n2t.net/addgene:84752 ; RRID:Addgene_84752) -
For your References section:
In vivo high-throughput profiling of CRISPR-Cpf1 activity. Kim HK, Song M, Lee J, Menon AV, Jung S, Kang YM, Choi JW, Woo E, Koh HC, Nam JW, Kim H. Nat Methods. 2016 Dec 19. doi: 10.1038/nmeth.4104. 10.1038/nmeth.4104 PubMed 27992409

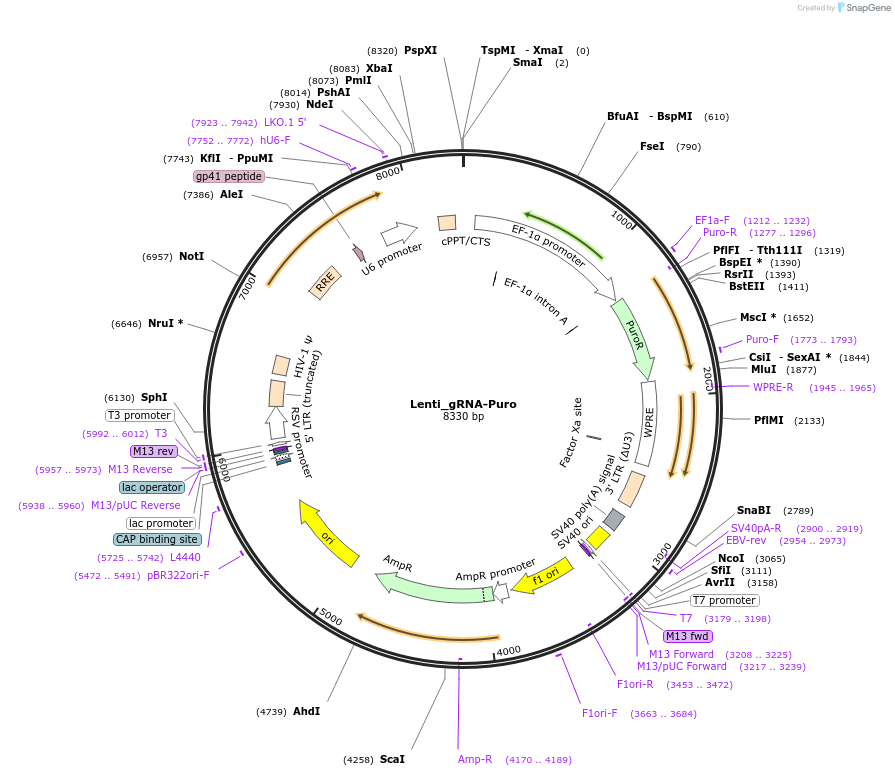

Map uploaded by the depositor.
