This material is available to academics and nonprofits only.
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 8458 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 | |
Backbone
-
Vector backbonepGL-2
- Backbone size w/o insert (bp) 5600
-
Vector typeMammalian Expression, Luciferase
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert namehuman cyclin E promoter
-
Alt nameCCNE1
-
SpeciesH. sapiens (human)
-
Insert Size (bp)1400
-
GenBank IDX95406
-
Entrez GeneCCNE1 (a.k.a. CCNE, pCCNE1)
Cloning Information
- Cloning method Restriction Enzyme
- 5′ sequencing primer na
- 3′ sequencing primer LucNrev (Common Sequencing Primers)
Resource Information
-
Articles Citing this Plasmid
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
Depositor Comments
Promoter sequence -363 to +1007; see author's map.
How to cite this plasmid
( Back to top)
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
10-4 cyclin E promoter was a gift from Bob Weinberg (Addgene plasmid # 8458 ; http://n2t.net/addgene:8458 ; RRID:Addgene_8458) -
For your References section:
Regulation of cyclin E transcription by E2Fs and retinoblastoma protein. Geng Y, Eaton EN, Picon M, Roberts JM, Lundberg AS, Gifford A, Sardet C, Weinberg RA. Oncogene 1996 Mar 21;12(6):1173-80. PubMed 8649818

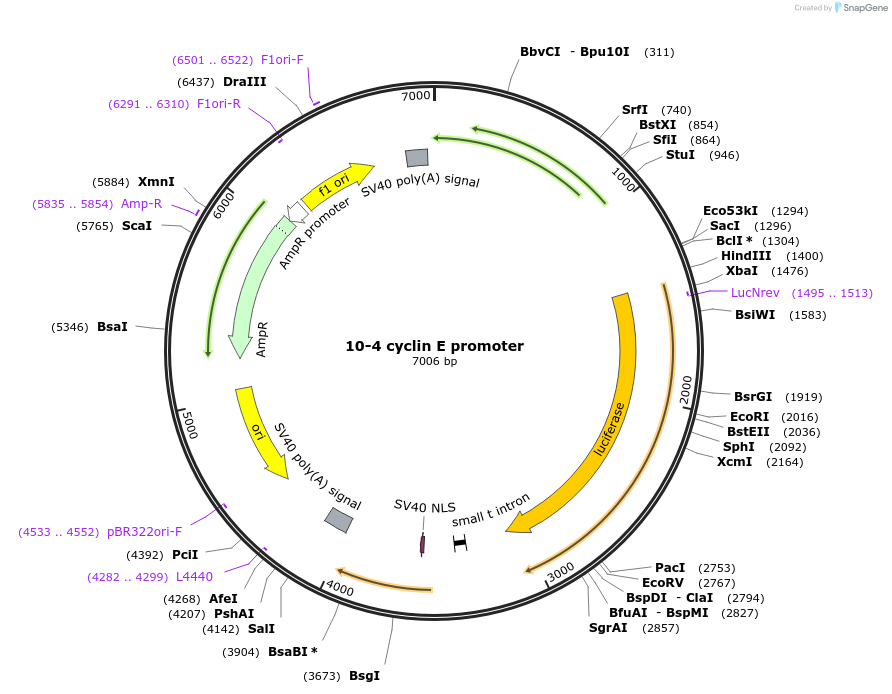

Map uploaded by the depositor.
