Addgene

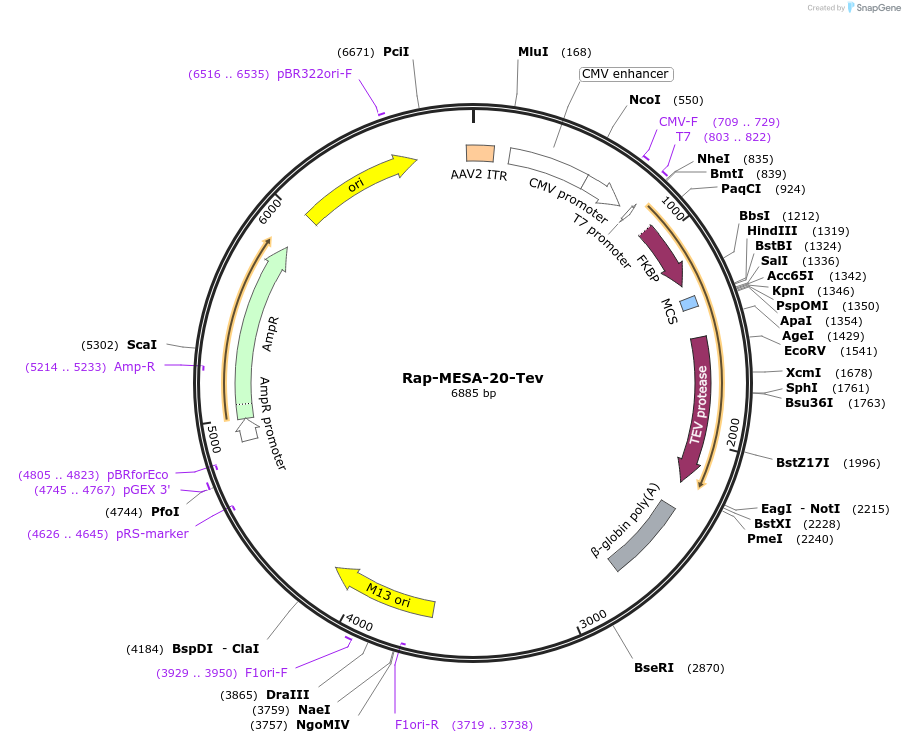

Rap-MESA-20-Tev
(Plasmid #84555)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 84555 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

Backbone

  • Vector backbone
    pAAV
  • Backbone manufacturer
    Stratagene
  • Backbone size w/o insert (bp) 5520
  • Total vector size (bp) 6885
  • Vector type
    Mammalian Expression, AAV

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    NEB Stable
  • Copy number
    Low Copy

Gene/Insert

  • Gene/Insert name
    Rap-MESA-FKBP-20-Tev
  • Species
    Synthetic
  • Insert Size (bp)
    1365
  • Promoter CMV

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site NheI (not destroyed)
  • 3′ cloning site NotI (not destroyed)
  • 5′ sequencing primer CGCAAATGGGCGGTAGGCGTG
  • 3′ sequencing primer TAGAAGGCACAGTCGAGG
    • (Common Sequencing Primers)

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    Rap-MESA-20-Tev was a gift from Joshua Leonard (Addgene plasmid # 84555 ; http://n2t.net/addgene:84555 ; RRID:Addgene_84555)

  • For your References section:

    Multiplexing Engineered Receptors for Multiparametric Evaluation of Environmental Ligands. Hartfield RM, Schwarz KA, Muldoon JJ, Bagheri N, Leonard JN. ACS Synth Biol. 2017 Nov 17;6(11):2042-2055. doi: 10.1021/acssynbio.6b00279. Epub 2017 Aug 23. 10.1021/acssynbio.6b00279 PubMed 28771312
