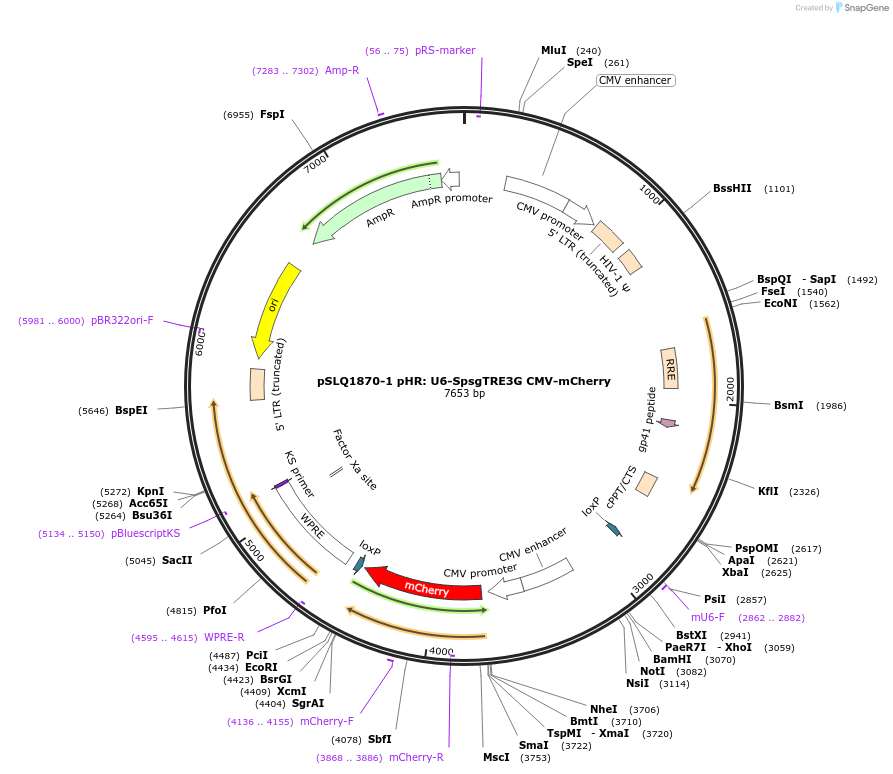

pSLQ1870-1 pHR: U6-SpsgTRE3G CMV-mCherry
(Plasmid #84248)

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 84248 Standard format: Plasmid sent in bacteria as agar stab 1 $85

Backbone

  • Vector backbone
    pHR
  • Total vector size (bp) 7653
  • Vector type
    Mammalian Expression, Lentiviral, CRISPR

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    NEB Stable
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    Sp sgTRE3G
  • gRNA/shRNA sequence
    GTACGTTCTCTATCACTGATA
  • Species
    Synthetic; S. pyogenes
  • Promoter mouse U6

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site BstXI (not destroyed)
  • 3′ cloning site XhoI (not destroyed)
  • 5′ sequencing primer GAGATCCAGTTTGGTTAGTACCGGG
  • 3′ sequencing primer ATGCATGGCGGTAATACGGTTAT
  • (Common Sequencing Primers)

Resource Information

Terms and Licenses

Trademarks:
  • Zeocin® is an InvivoGen trademark.

Depositor Comments

Contains a CMV-mCherry fluorescent marker 3' of the sgRNA.

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pSLQ1870-1 pHR: U6-SpsgTRE3G CMV-mCherry was a gift from Stanley Qi (Addgene plasmid # 84248 ; http://n2t.net/addgene:84248 ; RRID:Addgene_84248)
  • For your References section:

    Complex transcriptional modulation with orthogonal and inducible dCas9 regulators. Gao Y, Xiong X, Wong S, Charles EJ, Lim WA, Qi LS. Nat Methods. 2016 Oct 24. doi: 10.1038/nmeth.4042. 10.1038/nmeth.4042 PubMed 27776111
