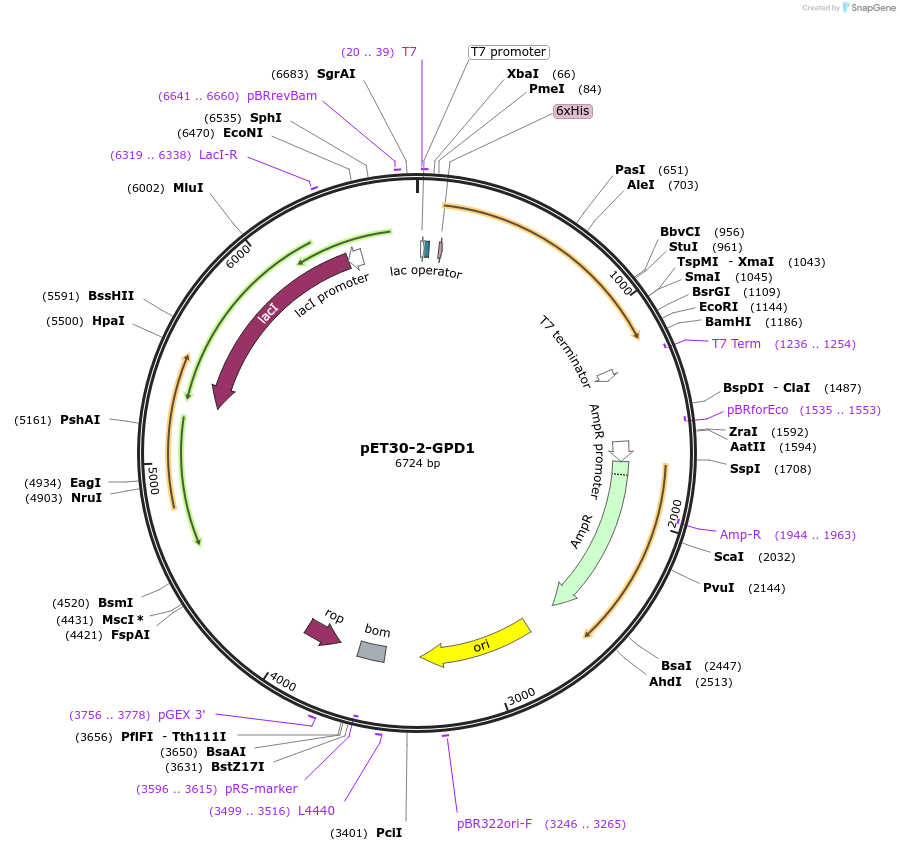

pET30-2-GPD1
(Plasmid
#83911)
-
Purposestable overexpression
-
Depositing Lab
-
Sequence Information
Ordering
Item | Catalog # | Description | Quantity | Price (USD) | |
---|---|---|---|---|---|
Plasmid | 83911 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 |
Backbone
-
Vector backbonepET30-2
- Backbone size w/o insert (bp) 5647
- Total vector size (bp) 6724
-
Vector typeBacterial Expression
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberUnknown
Gene/Insert
-
Gene/Insert nameglycerol-3-phosphate dehydrogenase 1
-
Alt nameGPD1
-
SpeciesH. sapiens (human)
-
Insert Size (bp)1077
-
GenBank IDNM_005276.3
-
Entrez GeneGPD1 (a.k.a. GPD-C, GPDH-C, HTGTI)
- Promoter T7
-
Tag
/ Fusion Protein
- 6x His tags (N terminal on insert)
Cloning Information
- Cloning method Restriction Enzyme
- 5′ cloning site NdeI (unknown if destroyed)
- 3′ cloning site BamHI (unknown if destroyed)
- 5′ sequencing primer T7 Promoter
- 3′ sequencing primer T7 Terminator (Common Sequencing Primers)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pET30-2-GPD1 was a gift from David Sabatini (Addgene plasmid # 83911 ; http://n2t.net/addgene:83911 ; RRID:Addgene_83911) -
For your References section:
A PHGDH inhibitor reveals coordination of serine synthesis and one-carbon unit fate. Pacold ME, Brimacombe KR, Chan SH, Rohde JM, Lewis CA, Swier LJ, Possemato R, Chen WW, Sullivan LB, Fiske BP, Cho S, Freinkman E, Birsoy K, Abu-Remaileh M, Shaul YD, Liu CM, Zhou M, Koh MJ, Chung H, Davidson SM, Luengo A, Wang AQ, Xu X, Yasgar A, Liu L, Rai G, Westover KD, Vander Heiden MG, Shen M, Gray NS, Boxer MB, Sabatini DM. Nat Chem Biol. 2016 Jun;12(6):452-8. doi: 10.1038/nchembio.2070. Epub 2016 Apr 25. 10.1038/nchembio.2070 PubMed 27110680
