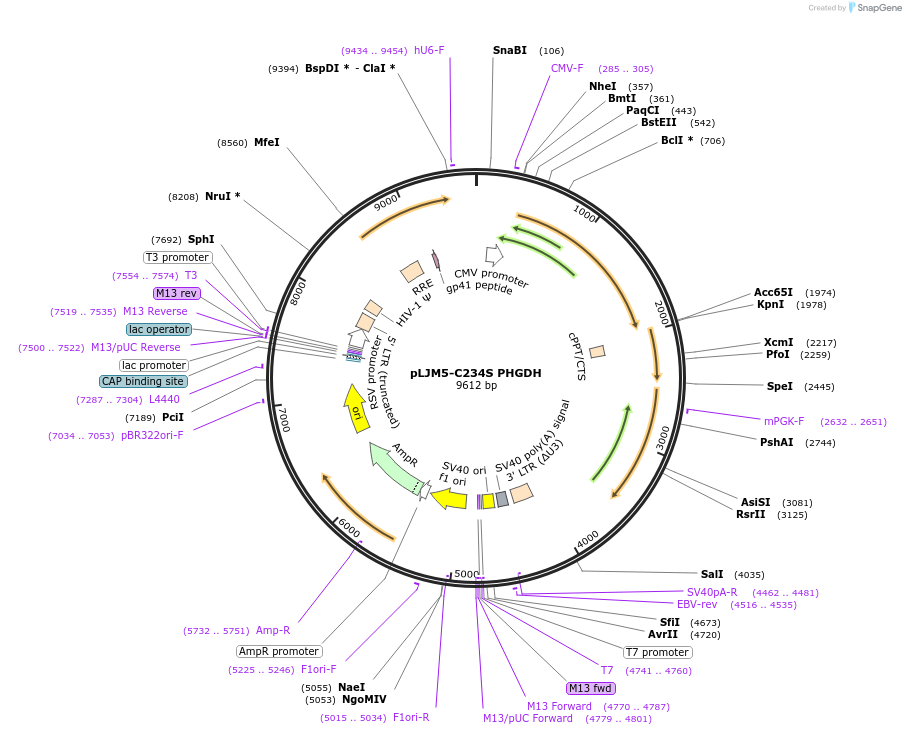

pLJM5-C234S PHGDH
(Plasmid #83902)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 83902 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

Backbone

  • Vector backbone
    pLJM5
  • Backbone size w/o insert (bp) 8010
  • Total vector size (bp) 9612
  • Vector type
    Mammalian Expression, Lentiviral
  • Selectable markers
    Hygromycin

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    NEB Stable
  • Copy number
    Unknown

Gene/Insert

  • Gene/Insert name
    Phosphoglycerate dehydrogenase
  • Alt name
    PHGDH
  • Species
    H. sapiens (human)
  • Insert Size (bp)
    1602
  • Mutation
    quikchanged cysteine 234 to serine
  • GenBank ID
    NM_006623.3
  • Entrez Gene
    PHGDH (a.k.a. 3-PGDH, 3PGDH, HEL-S-113, NLS, NLS1, PDG, PGAD, PGD, PGDH, PHGDHD, SERA)
  • Promoter CMV

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site NheI (unknown if destroyed)
  • 3′ cloning site KpnI (unknown if destroyed)
  • 5′ sequencing primer ATG TCG TAA CAA CTC CGC CCC ATT
  • 3′ sequencing primer TAG TTT GTA TGT CTG TTG CTA TTA
    • (Common Sequencing Primers)

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pLJM5-C234S PHGDH was a gift from David Sabatini (Addgene plasmid # 83902 ; http://n2t.net/addgene:83902 ; RRID:Addgene_83902)

  • For your References section:

    A PHGDH inhibitor reveals coordination of serine synthesis and one-carbon unit fate. Pacold ME, Brimacombe KR, Chan SH, Rohde JM, Lewis CA, Swier LJ, Possemato R, Chen WW, Sullivan LB, Fiske BP, Cho S, Freinkman E, Birsoy K, Abu-Remaileh M, Shaul YD, Liu CM, Zhou M, Koh MJ, Chung H, Davidson SM, Luengo A, Wang AQ, Xu X, Yasgar A, Liu L, Rai G, Westover KD, Vander Heiden MG, Shen M, Gray NS, Boxer MB, Sabatini DM. Nat Chem Biol. 2016 Jun;12(6):452-8. doi: 10.1038/nchembio.2070. Epub 2016 Apr 25. 10.1038/nchembio.2070 PubMed 27110680
