ANKRD24-TwinStrepII
(Plasmid #83190)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 83190 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

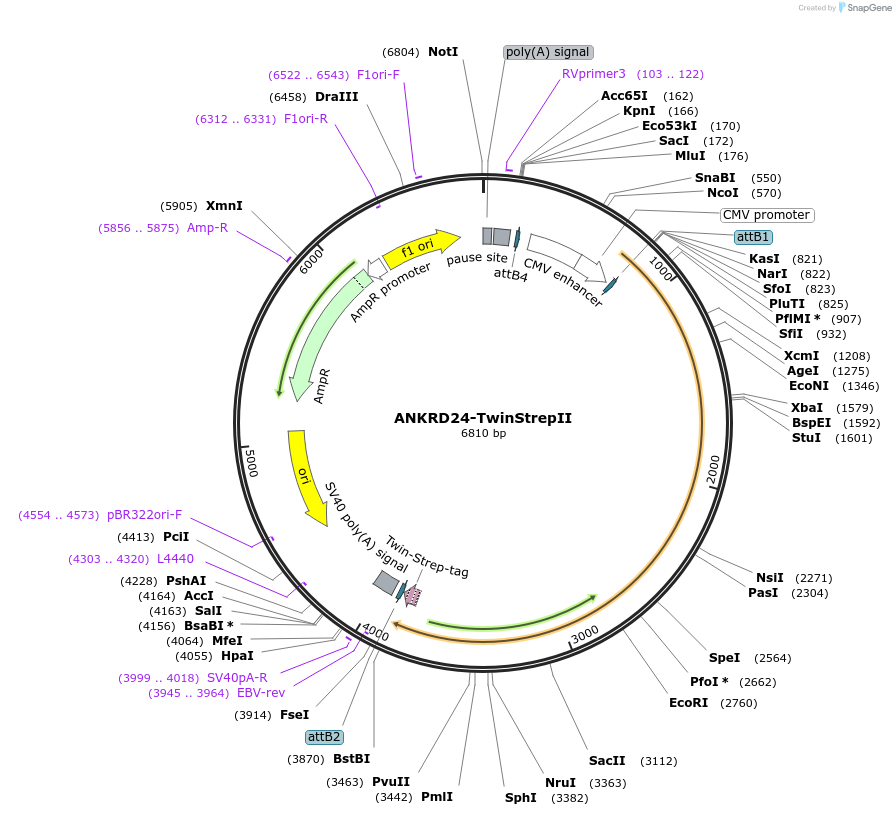

Backbone

  • Vector backbone
    pRP[Exp]-CMV
  • Backbone manufacturer
    Vector Builder
  • Backbone size w/o insert (bp) 3855
  • Total vector size (bp) 6810
  • Vector type
    Mammalian Expression

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    ANKRD24
  • Species
    M. musculus (mouse); Mouse
  • Insert Size (bp)
    2955
  • GenBank ID
    BC048236.1
  • Entrez Gene
    Ankrd24 (a.k.a. 4631433D01Rik, 5730519E19Rik, D10Bur2e)
  • Promoter CMV
  • Tag / Fusion Protein
    • Twin Strep Tag II (C terminal on insert)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site Nar1 (not destroyed)
  • 3′ cloning site Bgl2 (not destroyed)
  • 5′ sequencing primer None
  • 3′ sequencing primer None
    • (Common Sequencing Primers)

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    ANKRD24-TwinStrepII was a gift from Peter Barr-Gillespie (Addgene plasmid # 83190 ; http://n2t.net/addgene:83190 ; RRID:Addgene_83190)

  • For your References section:

    PDZD7-MYO7A complex identified in enriched stereocilia membranes. Morgan CP, Krey JF, Grati M, Zhao B, Fallen S, Kannan-Sundhari A, Liu XZ, Choi D, Muller U, Barr-Gillespie PG. Elife. 2016 Aug 15;5:e18312. doi: 10.7554/eLife.18312. 10.7554/eLife.18312 PubMed 27525485
