pJEP13-AAV-H1/TO-L-sgRNA(Tet2)-CMV-TetR-P2A-eGFP-KASH-pA
(Plasmid
#82703)
-
PurposeAAV backbone with a full length H1/TO promoter driving expression of a sgRNA that targets exon 3 of the mouse Tet2 locus. TracrRNA compatible with SpCas9. gRNA transcription is doxycycline dependent.
-
Depositing Lab
-
Sequence Information
Ordering
This material is available to academics and nonprofits only.
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 82703 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 | |
Backbone
-
Vector backboneAAV
-
Vector typeMammalian Expression, AAV, CRISPR
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)NEB Stable
-
Copy numberUnknown
Gene/Insert
-
Gene/Insert nameH1/TO-L gRNA Expression Cassette Containing Tet2 gRNA
-
gRNA/shRNA sequenceTet2 (mus musculus)
-
Tag
/ Fusion Protein
- CMV promoter driving expression of TetR-P2A-GFP-KASH fusion protein.
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
How to cite this plasmid
( Back to top)
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pJEP13-AAV-H1/TO-L-sgRNA(Tet2)-CMV-TetR-P2A-eGFP-KASH-pA was a gift from Jonathan Ploski (Addgene plasmid # 82703 ; http://n2t.net/addgene:82703 ; RRID:Addgene_82703) -
For your References section:
The Development of a Viral Mediated CRISPR/Cas9 System with Doxycycline Dependent gRNA Expression for Inducible In vitro and In vivo Genome Editing. de Solis CA, Ho A, Holehonnur R, Ploski JE. Front Mol Neurosci. 2016 Aug 18;9:70. doi: 10.3389/fnmol.2016.00070. eCollection 2016. 10.3389/fnmol.2016.00070 PubMed 27587996

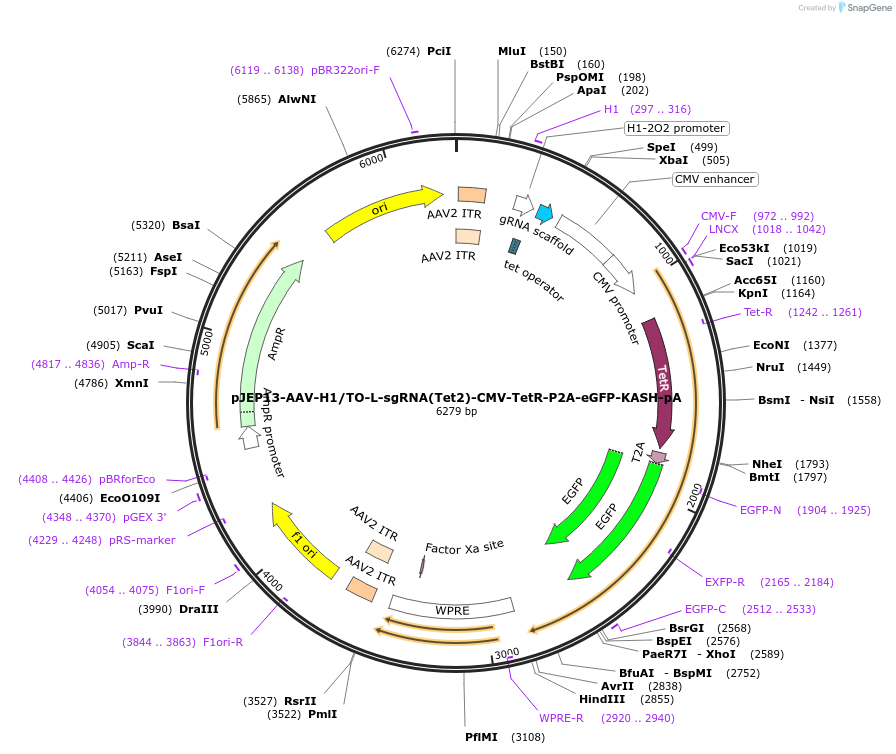

Map uploaded by the depositor.
