pLR5-CAG-NLS-tdiRFP670
(Plasmid
#82621)
-
PurposeExpresses NLS-tdiRFP670 in mammalian cells
-
Depositing Lab
-
Sequence Information
Ordering
This material is available to academics and nonprofits only.
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 82621 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 | |
Backbone
-
Vector backbonepPB-LR5
- Total vector size (bp) 9521
-
Vector typeMammalian Expression ; piggyBac vector
-
Selectable markersNeomycin (select with G418)
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert nameNLS-tdiRFP670
-
SpeciesSynthetic
-
Insert Size (bp)1998
Resource Information
-
Supplemental Documents
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
How to cite this plasmid
( Back to top)
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pLR5-CAG-NLS-tdiRFP670 was a gift from Hiroshi Ochiai (Addgene plasmid # 82621 ; http://n2t.net/addgene:82621 ; RRID:Addgene_82621) -
For your References section:
Role of dynamic nuclear deformation on genomic architecture reorganization. Seirin-Lee S, Osakada F, Takeda J, Tashiro S, Kobayashi R, Yamamoto T, Ochiai H. PLoS Comput Biol. 2019 Sep 11;15(9):e1007289. doi: 10.1371/journal.pcbi.1007289. eCollection 2019 Sep. 10.1371/journal.pcbi.1007289 PubMed 31509522

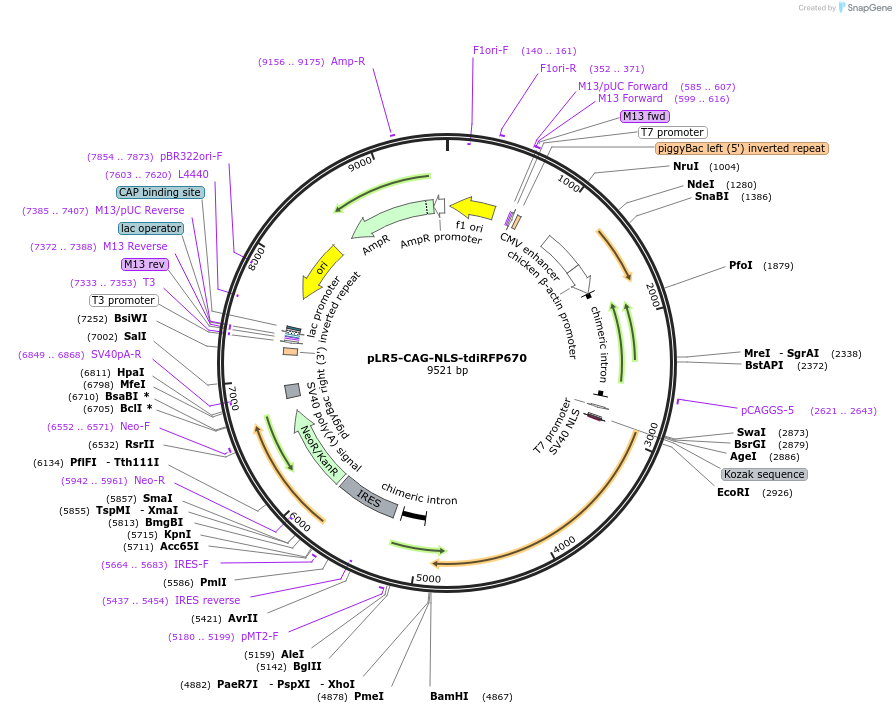

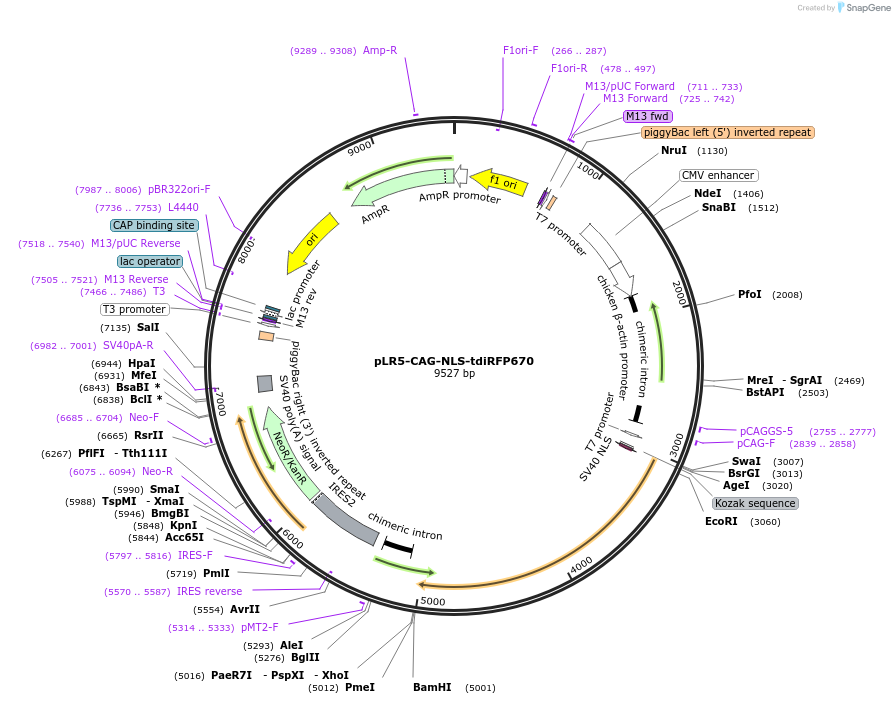

Map uploaded by the depositor.
