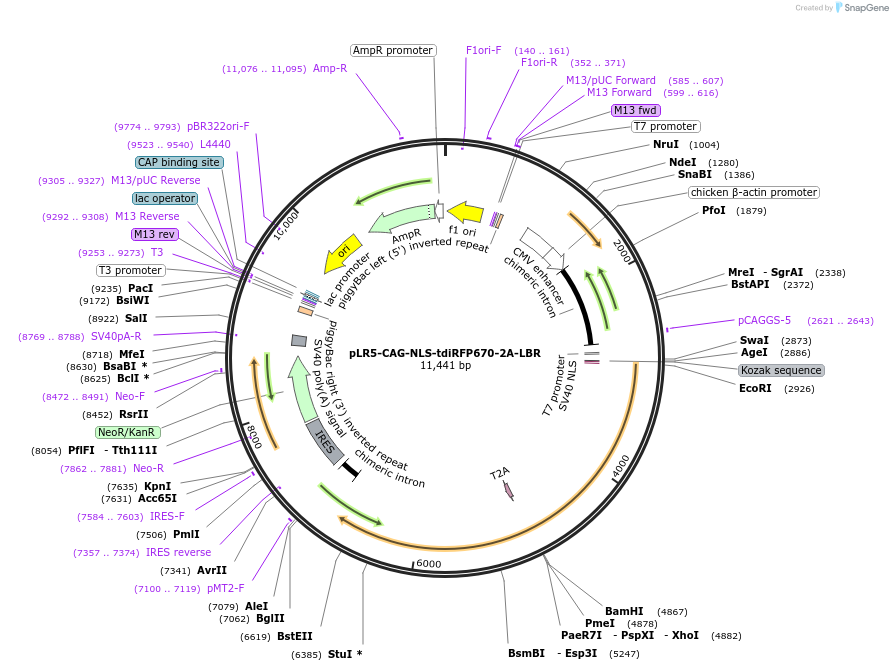

pLR5-CAG-NLS-tdiRFP670-2A-LBR
(Plasmid #82620)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 82620 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

Backbone

  • Vector backbone
    pPB-LR5
  • Total vector size (bp) 11441
  • Vector type
    Mammalian Expression ; piggyBac vector
  • Selectable markers
    Neomycin (select with G418)

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    NLS-tdiRFP670-LBR
  • Alt name
    NLS-tandem iRFP670 fused with mouse lamin B receptor (Lbr)
  • Species
    M. musculus (mouse), Synthetic
  • Insert Size (bp)
    3921
  • GenBank ID
    XM_006497071 XM_006497071
  • Entrez Gene
    Lbr (a.k.a. AI505894, C14SR, ic)

Resource Information

Terms and Licenses

Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pLR5-CAG-NLS-tdiRFP670-2A-LBR was a gift from Hiroshi Ochiai (Addgene plasmid # 82620 ; http://n2t.net/addgene:82620 ; RRID:Addgene_82620)

  • For your References section:

    Role of dynamic nuclear deformation on genomic architecture reorganization. Seirin-Lee S, Osakada F, Takeda J, Tashiro S, Kobayashi R, Yamamoto T, Ochiai H. PLoS Comput Biol. 2019 Sep 11;15(9):e1007289. doi: 10.1371/journal.pcbi.1007289. eCollection 2019 Sep. 10.1371/journal.pcbi.1007289 PubMed 31509522
