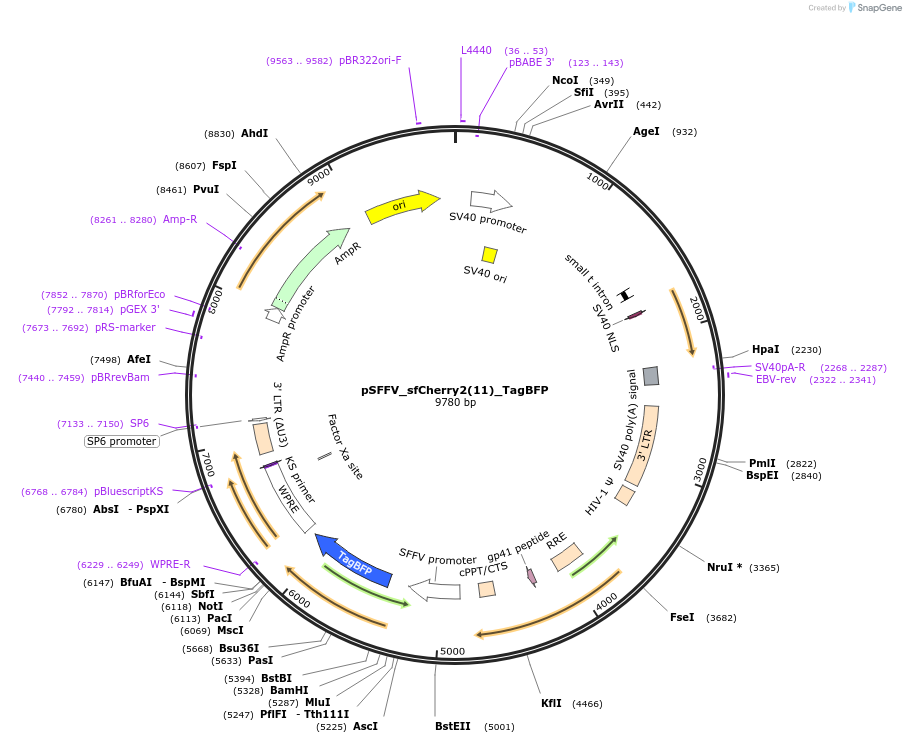

pSFFV_sfCherry2(11)_TagBFP
(Plasmid #82606)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 82606 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

Backbone

  • Vector backbone
    pHR-SFFV
  • Backbone size w/o insert (bp) 9000
  • Total vector size (bp) 9780
  • Vector type
    Mammalian Expression, Lentiviral

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    NEB Stable
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    sfCherry2(11)_TagBFP
  • Species
    Synthetic
  • Insert Size (bp)
    1518
  • Mutation
    changed Gly12 to Ala in sfCherry11+
  • Promoter SFFV

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site BamHI (not destroyed)
  • 3′ cloning site NotI (not destroyed)
  • 5′ sequencing primer GCTTCTGCTTCCCGAGCTCTA
  • 3′ sequencing primer GCAGCGTATCCACATAGCGTA
    • (Common Sequencing Primers)

Terms and Licenses

Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pSFFV_sfCherry2(11)_TagBFP was a gift from Bo Huang (Addgene plasmid # 82606 ; http://n2t.net/addgene:82606 ; RRID:Addgene_82606)

  • For your References section:

    Improved split fluorescent proteins for endogenous protein labeling. Feng S, Sekine S, Pessino V, Li H, Leonetti MD, Huang B. Nat Commun. 2017 Aug 29;8(1):370. doi: 10.1038/s41467-017-00494-8. 10.1038/s41467-017-00494-8 PubMed 28851864
