pTIM
(Plasmid
#81198)
-
Purpose(Empty Backbone) pTIM in vitro transcription backbone plasmid with two multiple cloning sites and two Rho-independent transcriptional terminators.
-
Depositing Lab
-
Sequence Information
Ordering
Item | Catalog # | Description | Quantity | Price (USD) | |
---|---|---|---|---|---|
Plasmid | 81198 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 |
Backbone
-
Vector backbonepIDTSmart Amp
-
Backbone manufacturerIntegrated DNA Technologies
-
Vector typeUnspecified
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Cloning Information
- 5′ sequencing primer GTAAAACGACGGCCAGT
- 3′ sequencing primer CAGGAAACAGCTATGAC (Common Sequencing Primers)
Resource Information
-
A portion of this plasmid was derived from a plasmid made bySynthesized by Integrated DNA Technologies
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
Depositor Comments

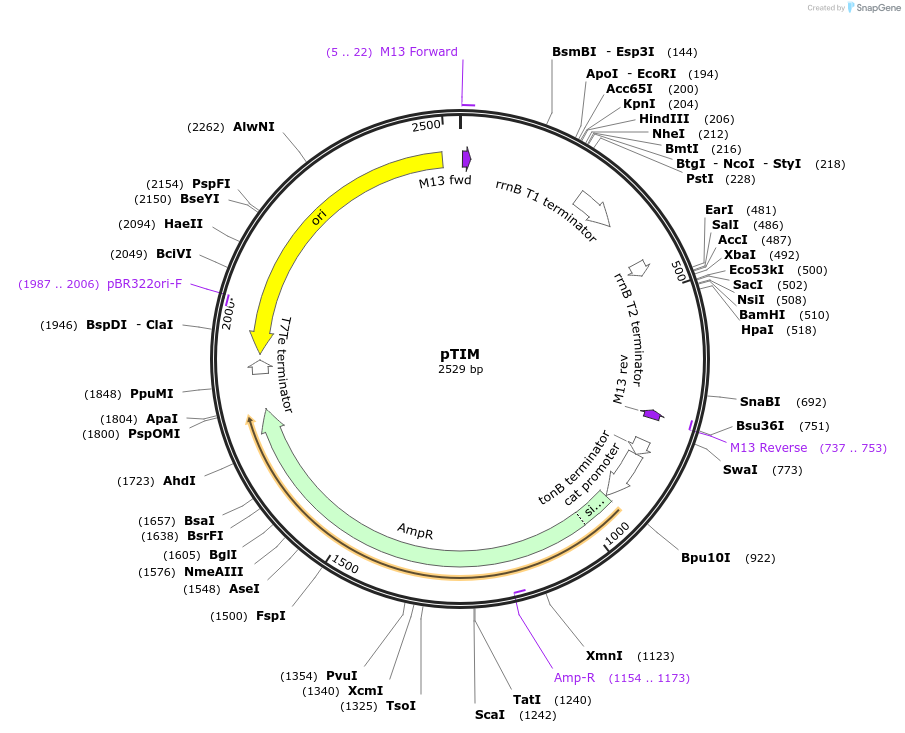

Please see the plasmid maps (second and third thumbnails below the large map image) for detailed sequence annotations.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pTIM was a gift from Andrés Vázquez-Torres (Addgene plasmid # 81198 ; http://n2t.net/addgene:81198 ; RRID:Addgene_81198) -
For your References section:
Guanosine tetraphosphate relieves the negative regulation of Salmonella pathogenicity island-2 gene transcription exerted by the AT-rich ssrA discriminator region. Tapscott T, Kim JS, Crawford MA, Fitzsimmons L, Liu L, Jones-Carson J, Vazquez-Torres A. Sci Rep. 2018 Jun 21;8(1):9465. doi: 10.1038/s41598-018-27780-9. 10.1038/s41598-018-27780-9 PubMed 29930310
