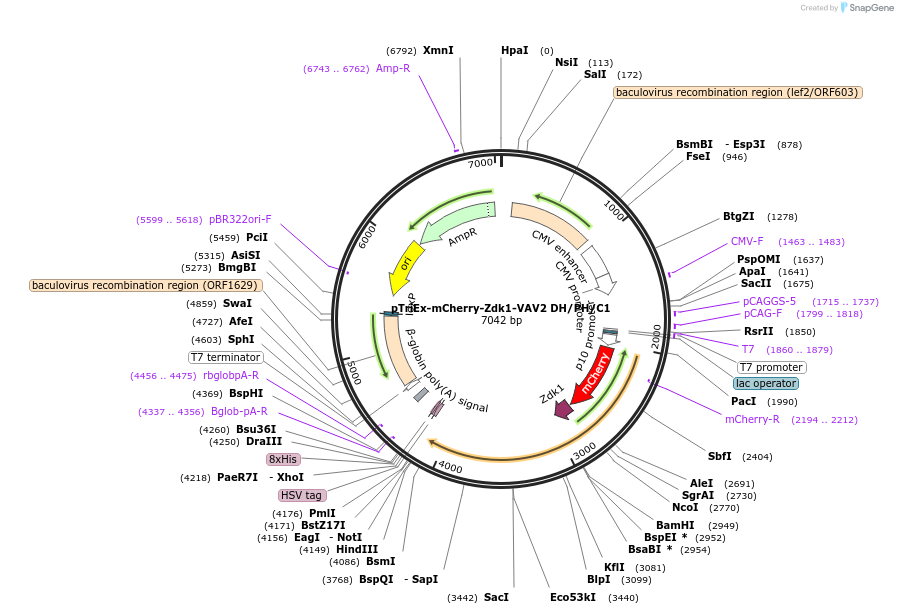

pTriEx-mCherry-Zdk1-VAV2 DH/PH/C1
(Plasmid #81060)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 81060 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

Backbone

  • Vector backbone
    pTriEx
  • Backbone size w/o insert (bp) 5000
  • Total vector size (bp) 6000
  • Vector type
    Mammalian Expression, Bacterial Expression, Insect Expression

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert 1

  • Gene/Insert name
    Zdk1
  • Alt name
    ZA127
  • Species
    Synthetic
  • Insert Size (bp)
    177
  • Tag / Fusion Protein
    • mCherry (N terminal on insert)

Cloning Information for Gene/Insert 1

  • Cloning method Unknown
  • 5′ sequencing primer aagtatcgggccctttgtgc
  • 3′ sequencing primer GGCAGCCTGCACCTGAGGTTAATCAC
    • (Common Sequencing Primers)

Gene/Insert 2

  • Gene/Insert name
    VAV2 DH/PH/C1
  • Alt name
    VAV2
  • Species
    H. sapiens (human)
  • Entrez Gene
    VAV2 (a.k.a. VAV-2)

Cloning Information for Gene/Insert 2

  • Cloning method Unknown
  • 5′ sequencing primer aagtatcgggccctttgtgc
  • 3′ sequencing primer GGCAGCCTGCACCTGAGGTTAATCAC
    • (Common Sequencing Primers)

Terms and Licenses

Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pTriEx-mCherry-Zdk1-VAV2 DH/PH/C1 was a gift from Klaus Hahn (Addgene plasmid # 81060 ; http://n2t.net/addgene:81060 ; RRID:Addgene_81060)

  • For your References section:

    LOVTRAP: an optogenetic system for photoinduced protein dissociation. Wang H, Vilela M, Winkler A, Tarnawski M, Schlichting I, Yumerefendi H, Kuhlman B, Liu R, Danuser G, Hahn KM. Nat Methods. 2016 Jul 18. doi: 10.1038/nmeth.3926. 10.1038/nmeth.3926 PubMed 27427858
