pHS2
(Plasmid
#81037)
-
PurposeHO endonuclease expression
-
Depositing Lab
-
Publication
-
Sequence Information
Ordering
Item | Catalog # | Description | Quantity | Price (USD) | |
---|---|---|---|---|---|
Plasmid | 81037 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 |
Backbone
-
Vector backbonepRS316
- Backbone size w/o insert (bp) 8690
- Total vector size (bp) 9654
-
Modifications to backboneFirst, 3.8 kb EcoRI-SalI fragment from YCp50-HO containing HO gene (with promoter) cloned into EcoRI-SalI site in pRS316. MCS may not contain unique restriction sites. The plasmid does not have a ApaI site except in URA3. Next, 0.8kb URA3 cassette replaced with 1.764kb HYG cassette.
-
Vector typeYeast Expression
-
Selectable markersHygromycin ; hph( resistance)
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert nameHYGMX
-
SpeciesS. cerevisiae (budding yeast)
-
Insert Size (bp)1764
- Promoter TEF
Cloning Information
- Cloning method Ligation Independent Cloning
- 5′ sequencing primer unknown (Common Sequencing Primers)
Resource Information
-
Article Citing this Plasmid
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
Depositor Comments
The plasmid contains HO sequence with its endogenous promoter. Can be used for mating type switch, diploidization.

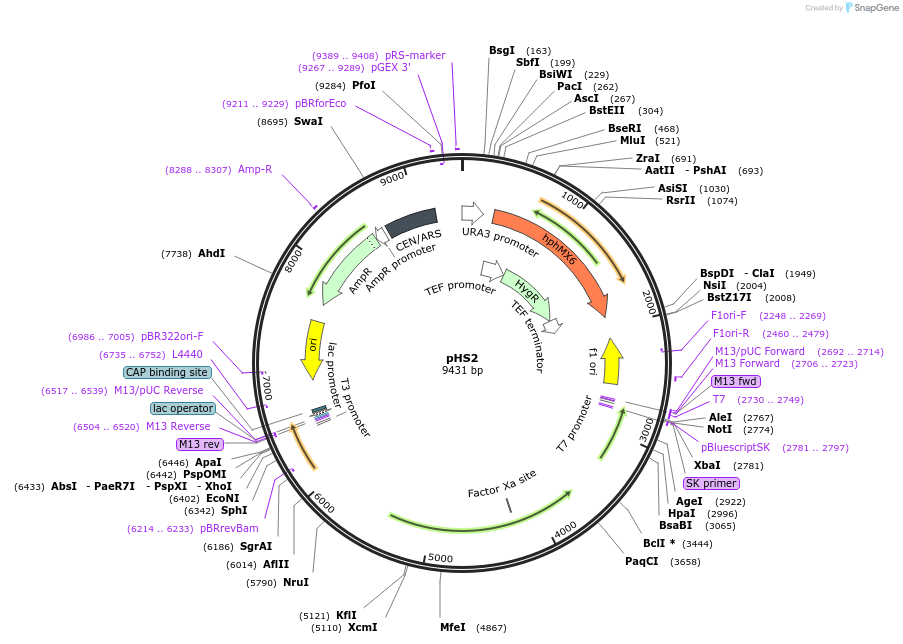

Please note the Addgene verified sequence differs from the original diagram map.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pHS2 was a gift from John McCusker (Addgene plasmid # 81037 ; http://n2t.net/addgene:81037 ; RRID:Addgene_81037)
