pLITMUS-rpoN-cI5G6G-J23106-geneIII
(Plasmid #80906)

• Purpose: Phagemid (encodes cI5G6G and M13 gene III)
• Depositing Lab: Mark Isalan
• Publication: Brodel et al Nat Commun. 2016 Dec 16;7:13858. doi: 10.1038/ncomms13858.

Backbone

• Vector backbone: pLITMUS
• Backbone manufacturer: NEB
• Total vector size (bp): 4924
• Modifications to backbone: M13 gene III expression cassette cI5G6G expression cassette
• Vector type: Bacterial Expression

Growth in Bacteria

• Bacterial Resistance(s): Ampicillin, 100 μg/mL
• Growth Temperature: 37°C
• Growth Strain(s): DH5alpha
• Copy number: High Copy

Gene/Insert 1

• Gene/Insert name: M13 gene III
• Species: M13 bacteriophage
• Insert Size (bp): 1275
• Promoter: BBa_J23106

Cloning Information for Gene/Insert 1

• Cloning method: Gibson Cloning
• 5′ sequencing primer: CGTAGTTATCTACACGACG
• 3′ sequencing primer: TGCTTATACAATCTTCCTG

Gene/Insert 2

• Gene/Insert name: cI5G6G
• Species: Synthetic
• Insert Size (bp): 714
• Promoter: rpoN

Cloning Information for Gene/Insert 2

• Cloning method: Restriction Enzyme
• 5′ cloning site: EcoRI (not destroyed)
• 3′ cloning site: BsaI (not destroyed)
• 5′ sequencing primer: gtc gat ttt tgt gat gct cg
• 3′ sequencing primer: ggg tta ttg tct cat gag cgg ata c

Resource Information

• Supplemental Documents:

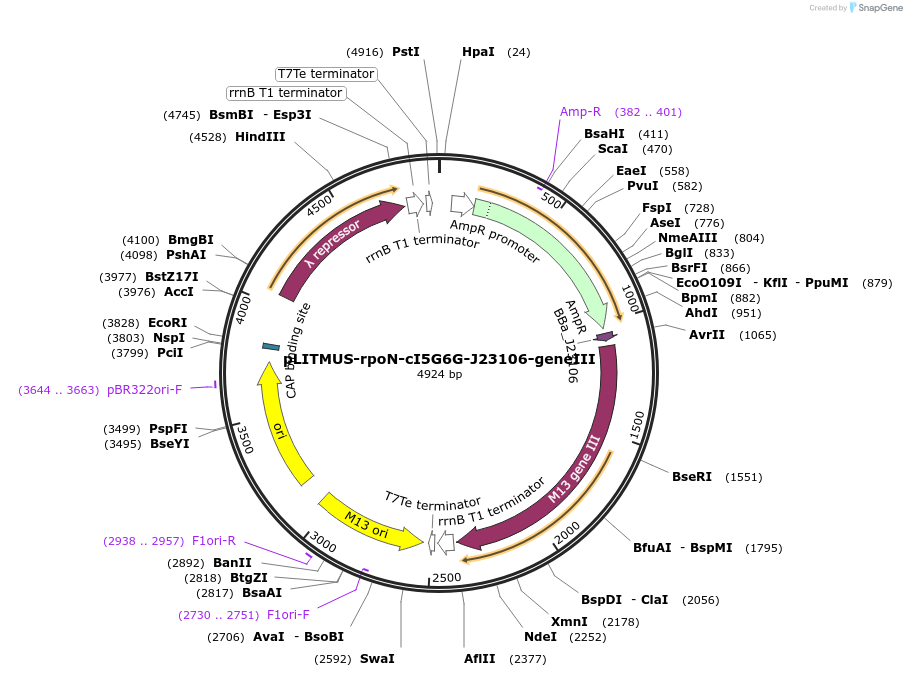

  • pLITMUS-rpoN-cI5G6G-J23106-geneIII.gb
