pME-nlsGFP-P2A
(Plasmid
#80808)
-
Purposenuclear localization signal fused to N-terminus of GFP (nlsGFP) without stop codon, followed by P2A
-
Depositing Lab
-

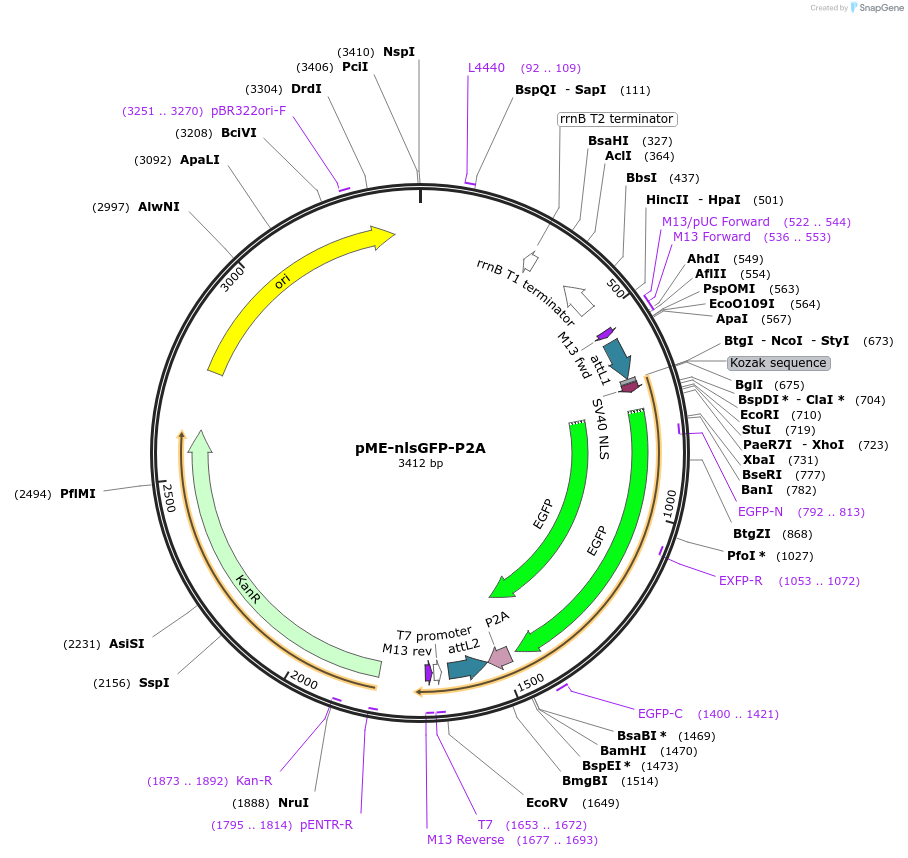

Sequence Information
Ordering
Item | Catalog # | Description | Quantity | Price (USD) | |
---|---|---|---|---|---|
Plasmid | 80808 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 |
Backbone
-
Vector backbonepDONR221
-
Backbone manufacturerInvitrogen
- Backbone size w/o insert (bp) 2245
- Total vector size (bp) 3412
-
Modifications to backbonenlsGFP P2A
Growth in Bacteria
-
Bacterial Resistance(s)Kanamycin, 50 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberUnknown
Gene/Insert
-
Gene/Insert nameminimal cytomegalovirus immediate early enhancer/promoter
-
Alt nameCMVmin
-
Insert Size (bp)894
Cloning Information
- Cloning method Gateway Cloning
- 5′ sequencing primer M13(20)F
- 3′ sequencing primer M13R (Common Sequencing Primers)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pME-nlsGFP-P2A was a gift from Philip Washbourne (Addgene plasmid # 80808 ; http://n2t.net/addgene:80808 ; RRID:Addgene_80808) -
For your References section:
A MultiSite Gateway Toolkit for Rapid Cloning of Vertebrate Expression Constructs with Diverse Research Applications. Fowler DK, Stewart S, Seredick S, Eisen JS, Stankunas K, Washbourne P. PLoS One. 2016 Aug 8;11(8):e0159277. doi: 10.1371/journal.pone.0159277. eCollection 2016. PONE-D-16-19476 [pii] PubMed 27500400
