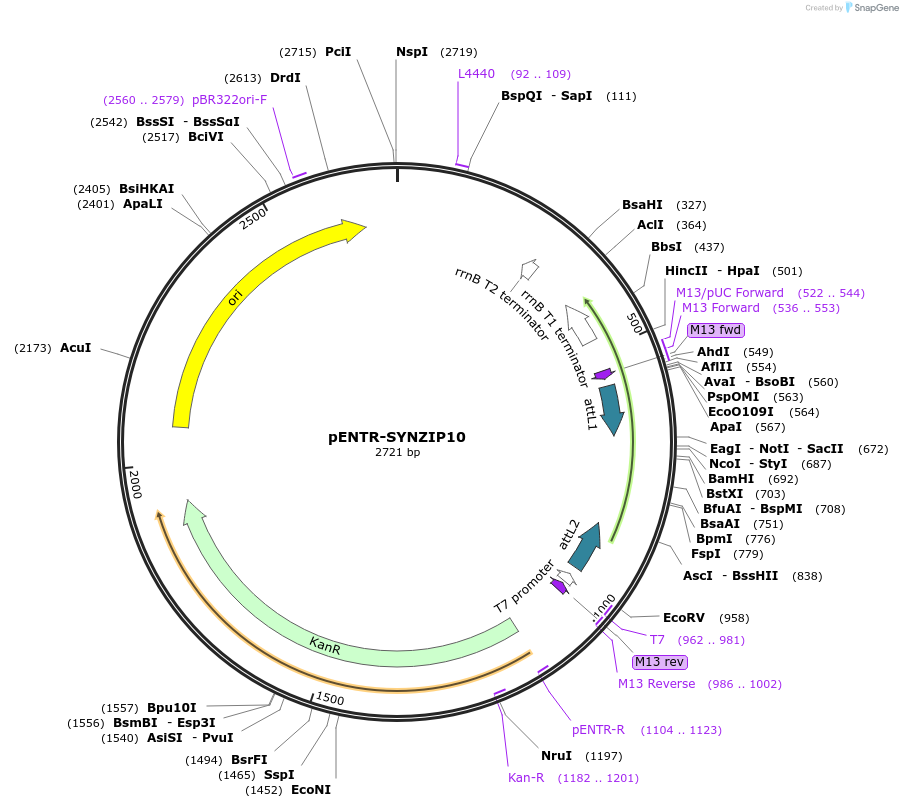

pENTR-SYNZIP10
(Plasmid #80665)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 80665 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

Backbone

  • Vector backbone
    pENTR_D-TOPO
  • Backbone manufacturer
    Invitrogen
  • Backbone size w/o insert (bp) 2592
  • Vector type
    Entry vector

Growth in Bacteria

  • Bacterial Resistance(s)
    Kanamycin, 50 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    Unknown

Gene/Insert

  • Gene/Insert name
    SYNZIP10
  • Species
    Synthetic
  • Insert Size (bp)
    129

Cloning Information

  • Cloning method TOPO Cloning
  • 5′ sequencing primer M13 (-21) Forward, TGTAAAACGACGGCCAGT
  • 3′ sequencing primer M13 Reverse, CAGGAAACAGCTATGAC
    • (Common Sequencing Primers)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pENTR-SYNZIP10 was a gift from Amy Keating (Addgene plasmid # 80665 ; http://n2t.net/addgene:80665 ; RRID:Addgene_80665)

  • For your References section:

    SYNZIP protein interaction toolbox: in vitro and in vivo specifications of heterospecific coiled-coil interaction domains. Thompson KE, Bashor CJ, Lim WA, Keating AE. ACS Synth Biol. 2012 Apr 20;1(4):118-29. 10.1021/sb200015u PubMed 22558529
