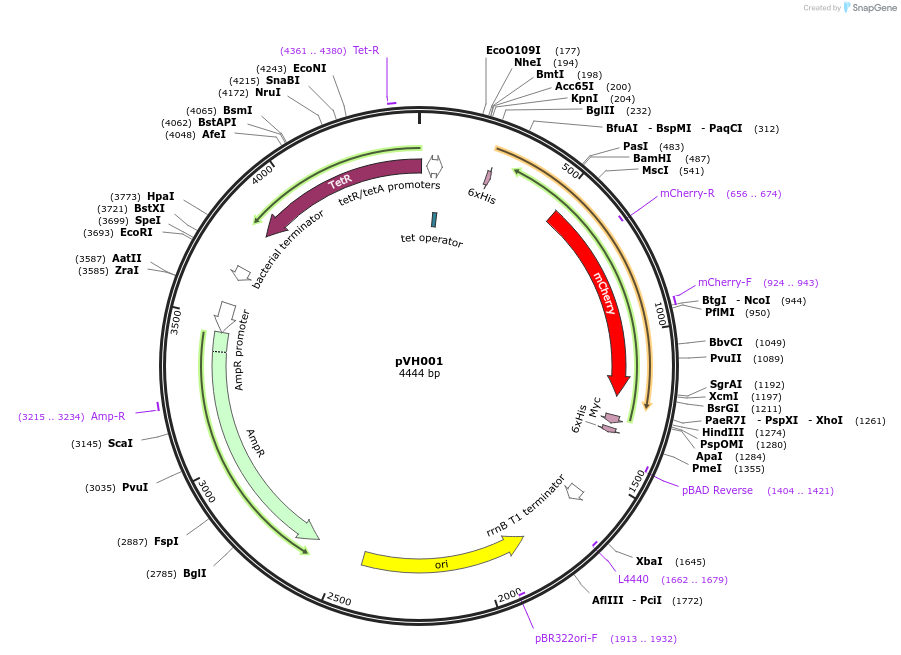

pVH001
(Plasmid #80394)

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 80394 Standard format: Plasmid sent in bacteria as agar stab 1 $85

Backbone

  • Vector backbone
    ColE1
  • Backbone size w/o insert (bp) 2500
  • Total vector size (bp) 4444
  • Vector type
    Bacterial Expression, Synthetic Biology

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    JM109
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    mCherry RFP
  • Insert Size (bp)
    748
  • Tag / Fusion Protein
    • Fused by GS linkers to Sh3pep-LZX scaffold protein

Resource Information

Terms and Licenses

Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pVH001 was a gift from Richard Murray (Addgene plasmid # 80394 ; http://n2t.net/addgene:80394 ; RRID:Addgene_80394)
  • For your References section:

    Design and implementation of a biomolecular concentration tracker. Hsiao V, de los Santos EL, Whitaker WR, Dueber JE, Murray RM. ACS Synth Biol. 2015 Feb 20;4(2):150-61. doi: 10.1021/sb500024b. Epub 2014 May 15. 10.1021/sb500024b PubMed 24847683
