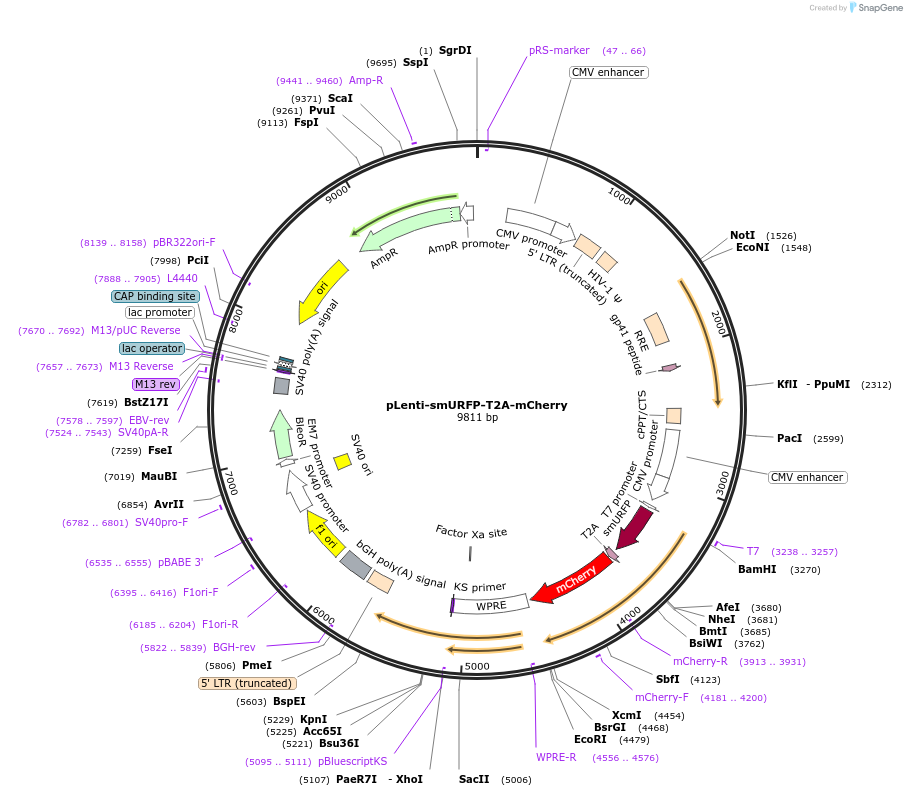

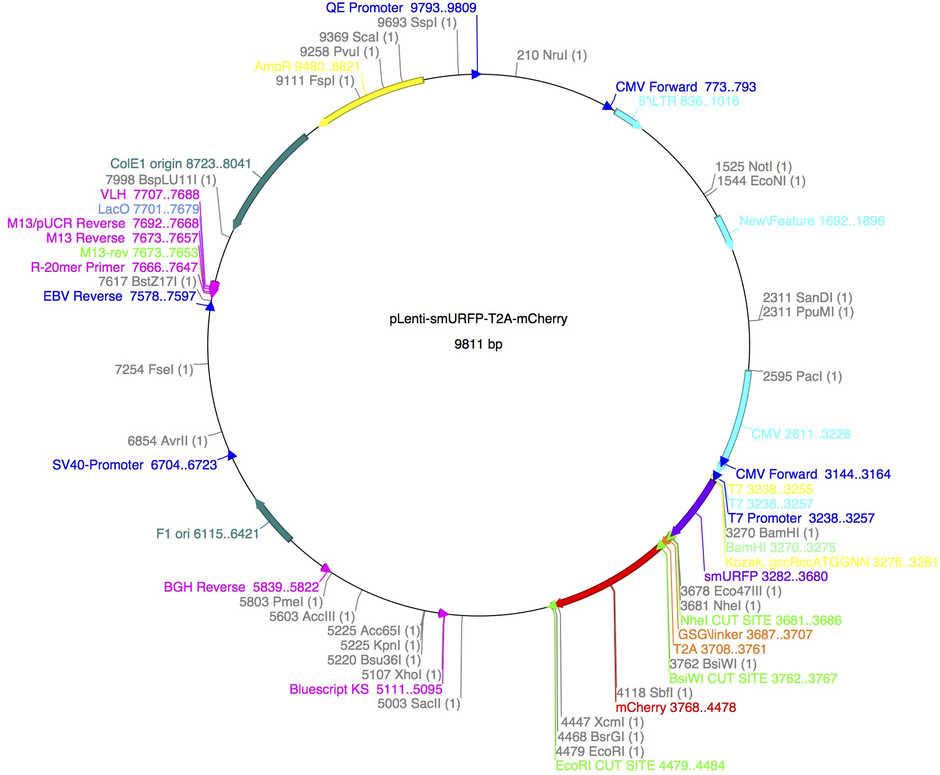

pLenti-smURFP-T2A-mCherry
(Plasmid #80347)

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 80347 Standard format: Plasmid sent in bacteria as agar stab 1 $85

Backbone

  • Vector backbone
    pLenti
  • Backbone manufacturer
    Deisseroth / Boyden lab
  • Backbone size w/o insert (bp) 9412
  • Total vector size (bp) 9811
  • Modifications to backbone
    Lentiviral transfer vector (2nd Generation) under the CMV promoter that expresses smURFP and mCherry.
  • Vector type
    Lentiviral

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    30°C
  • Growth Strain(s)
    Stbl3
  • Growth instructions
    Any growth strain that avoids recombination and 30 ˚C is recommended to avoid loss of DNA upon propagation
  • Copy number
    Low Copy

Gene/Insert 1

  • Gene/Insert name
    smURFP
  • Alt name
    small Ultra-Red Fluorescent Protein
  • Species
    Synthetic
  • Insert Size (bp)
    399
  • GenBank ID
    KX449134
  • Promoter CMV

Cloning Information for Gene/Insert 1

  • Cloning method Restriction Enzyme
  • 5′ cloning site BamHI (not destroyed)
  • 3′ cloning site NheI (not destroyed)
  • 5′ sequencing primer TAATACGACTCACTATAGGG
  • 3′ sequencing primer Unnecessary
  • (Common Sequencing Primers)

Gene/Insert 2

  • Gene/Insert name
    mCherry
  • Alt name
    monomeric Cherry fluorescent protein
  • Species
    Synthetic
  • Insert Size (bp)
    711
  • GenBank ID
    AY678264
  • Promoter CMV

Cloning Information for Gene/Insert 2

  • Cloning method Restriction Enzyme
  • 5′ cloning site BsiWI (not destroyed)
  • 3′ cloning site EcoRI (not destroyed)
  • 5′ sequencing primer GGAGAATCCCGGCCCT
  • 3′ sequencing primer CCAGTCAATCTTTCACAAATTTTGTAATCCAGAGG
  • (Common Sequencing Primers)

Terms and Licenses

Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pLenti-smURFP-T2A-mCherry was a gift from Erik Rodriguez & Roger Tsien (Addgene plasmid # 80347 ; http://n2t.net/addgene:80347 ; RRID:Addgene_80347)
  • For your References section:

    A far-red fluorescent protein evolved from a cyanobacterial phycobiliprotein. Rodriguez EA, Tran GN, Gross LA, Crisp JL, Shu X, Lin JY, Tsien RY. Nat Methods. 2016 Aug 1. doi: 10.1038/nmeth.3935. 10.1038/nmeth.3935 PubMed 27479328
