PurposeMonomeric near-infrared fluorescent protein miRFP703 in bacterial plasmid
-
Depositing Lab
-
Sequence Information
Ordering
This material is available to academics and nonprofits only.
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 79985 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 | |
Backbone
-
Vector backbonepBAD/His-B
-
Backbone manufacturerInvitrogen
- Backbone size w/o insert (bp) 3999
- Total vector size (bp) 4947
-
Modifications to backboneSeveral amino acids between His-tag and miRFP703 were removed.
-
Vector typeBacterial Expression
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberLow Copy
Gene/Insert
-
Gene/Insert namemiRFP703
-
SpeciesSynthetic
-
Insert Size (bp)948
- Promoter araB
Cloning Information
- Cloning method Restriction Enzyme
- 5′ cloning site BglII (not destroyed)
- 3′ cloning site EcoRI (not destroyed)
- 5′ sequencing primer pBAD-fwd
- 3′ sequencing primer pBAD-rev (Common Sequencing Primers)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
How to cite this plasmid
( Back to top)
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pBAD/His-miRFP703 was a gift from Vladislav Verkhusha (Addgene plasmid # 79985 ; http://n2t.net/addgene:79985 ; RRID:Addgene_79985) -
For your References section:
Bright monomeric near-infrared fluorescent proteins as tags and biosensors for multiscale imaging. Shcherbakova DM, Baloban M, Emelyanov AV, Brenowitz M, Guo P, Verkhusha VV. Nat Commun. 2016 Aug 19;7:12405. doi: 10.1038/ncomms12405. 10.1038/ncomms12405 PubMed 27539380

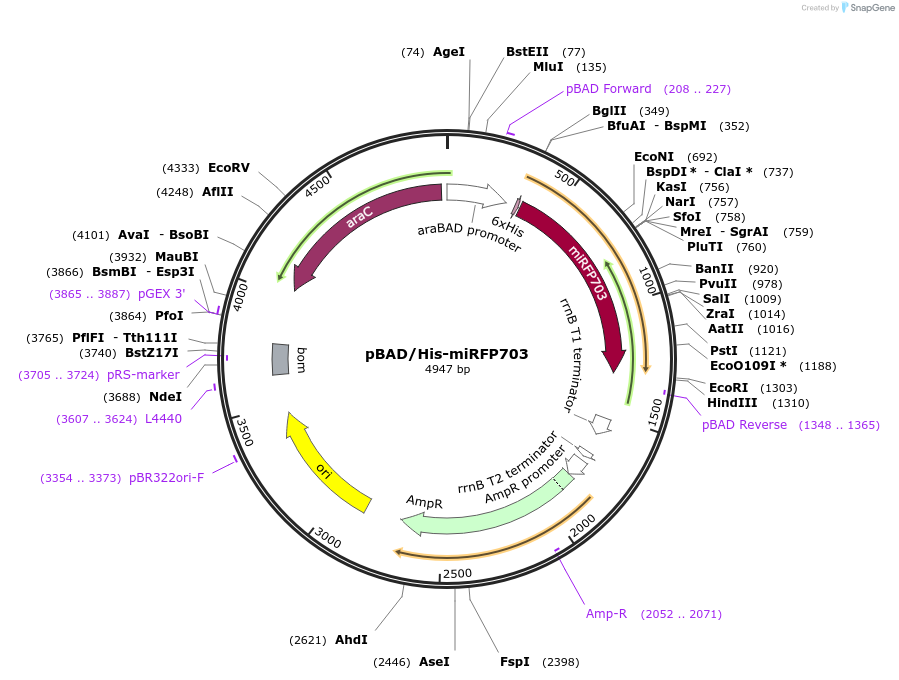

Map uploaded by the depositor.
