Purpose(Empty Backbone) Expression plasmid - BsmBI entry sites
-
Depositing Lab
-
Sequence Information
Ordering
This material is available to academics and nonprofits only.
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 79784 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 | |
Backbone
-
Vector backbonepTKEI-Dest
- Backbone size (bp) 3712
-
Vector typeBacterial Expression
- Promoter pTrc
-
Tag
/ Fusion Protein
- 6xHis (C terminal on backbone)
Growth in Bacteria
-
Bacterial Resistance(s)Kanamycin, 50 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Cloning Information
- Cloning method Restriction Enzyme
Resource Information
-
Supplemental Documents
-
Articles Citing this Plasmid
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
How to cite this plasmid
( Back to top)
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pTKEI-Dest was a gift from David Savage (Addgene plasmid # 79784 ; http://n2t.net/addgene:79784 ; RRID:Addgene_79784) -
For your References section:
Rapid construction of metabolite biosensors using domain-insertion profiling. Nadler DC, Morgan SA, Flamholz A, Kortright KE, Savage DF. Nat Commun. 2016 Jul 29;7:12266. doi: 10.1038/ncomms12266. 10.1038/ncomms12266 PubMed 27470466

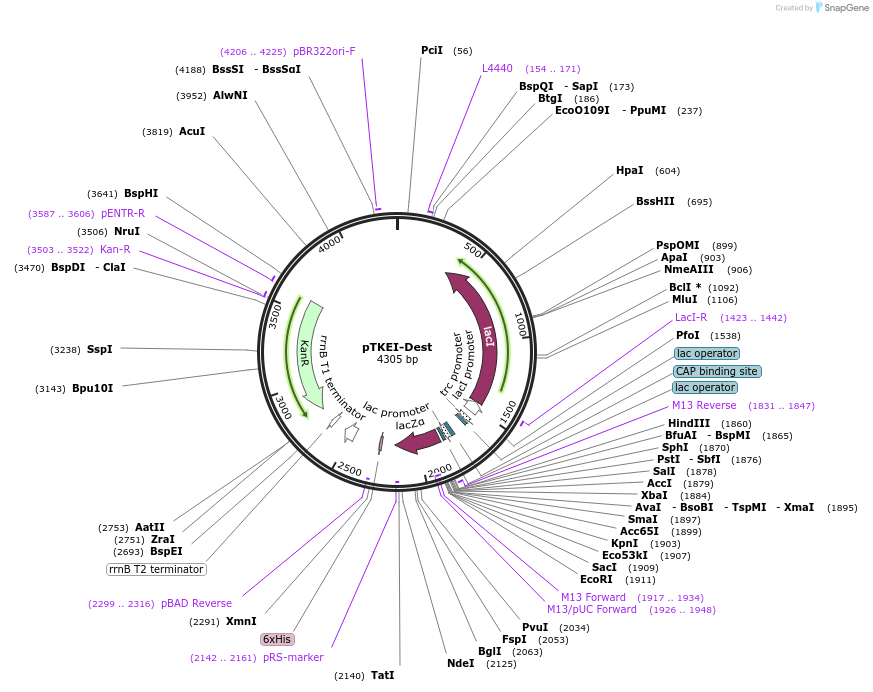

Map uploaded by the depositor.
