5J39 (TDRKH)
(Plasmid
#79523)
-
PurposeBacterial expression for structure determination; may not be full ORF
-
Depositing Lab
-
Publication
-
Sequence Information
Ordering
This material is available to academics and nonprofits only.
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 79523 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 | |

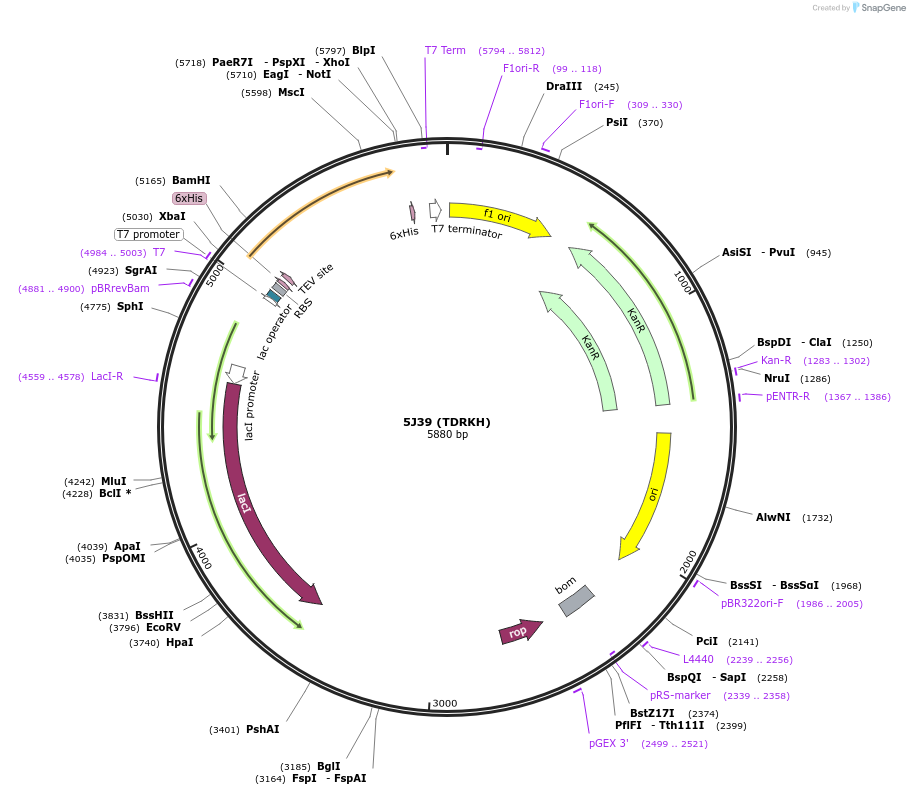

Backbone
-
Vector backbonepET28-MHL
-
Backbone manufacturerSGC (Addgene Plasmid #26096)
- Backbone size w/o insert (bp) 7325
-
Vector typeBacterial Expression
Growth in Bacteria
-
Bacterial Resistance(s)Kanamycin, 50 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert nameTDRD2
-
Alt nameTDRD2:JMC107-A01:C234847
-
Alt namePDB IDs: 5J39, 6B57
-
SpeciesH. sapiens (human)
-
Insert Size (bp)570
-
Entrez GeneTDRKH (a.k.a. TDRD2)
- Promoter T7-lacO
-
Tags
/ Fusion Proteins
- 6xHis (N terminal on backbone)
- TEV cleavage site (N terminal on backbone)
Cloning Information
- Cloning method Ligation Independent Cloning
- 5′ sequencing primer T7
- 3′ sequencing primer T7-term (Common Sequencing Primers)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
Depositor Comments
Please see http://www.thesgc.org/structures/5J39 and http://www.thesgc.org/structures/6B57/ for more information.
How to cite this plasmid
( Back to top)
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
5J39 (TDRKH) was a gift from Cheryl Arrowsmith (Addgene plasmid # 79523 ; http://n2t.net/addgene:79523 ; RRID:Addgene_79523)
