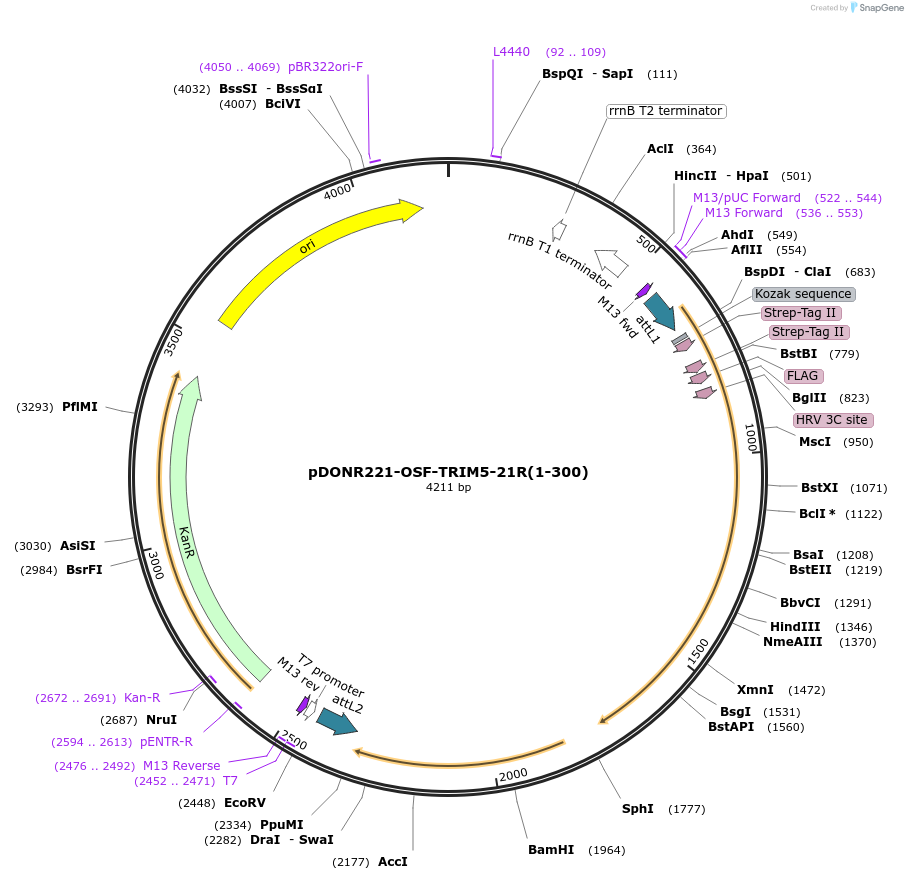

pDONR221-OSF-TRIM5-21R(1-300)
(Plasmid #79029)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 79029 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

Backbone

  • Vector backbone
    pDONR221
  • Backbone manufacturer
    Invitrogen
  • Backbone size w/o insert (bp) 4762
  • Total vector size (bp) 3623
  • Modifications to backbone
    The ccdB cassette in the backbone was replaced with the insert
  • Vector type
    Insect Expression

Growth in Bacteria

  • Bacterial Resistance(s)
    Kanamycin, 50 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    TRIM5-21R (1-300)
  • Alt name
    TRIM5-21R (deltaSPRY)(1-300)
  • Species
    Synthetic
  • Insert Size (bp)
    1050
  • Promoter T7
  • Tag / Fusion Protein
    • OneSTrEP-FLAG (N terminal on insert)

Cloning Information

  • Cloning method Gateway Cloning
  • 5′ sequencing primer GTTTTCCCAGTCACGAC
  • 3′ sequencing primer CAGGAAACAGCTATGAC
    • (Common Sequencing Primers)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pDONR221-OSF-TRIM5-21R(1-300) was a gift from Wesley Sundquist (Addgene plasmid # 79029 ; http://n2t.net/addgene:79029 ; RRID:Addgene_79029)

  • For your References section:

    Primate TRIM5 proteins form hexagonal nets on HIV-1 capsids. Li YL, Chandrasekaran V, Carter SD, Woodward CL, Christensen DE, Dryden KA, Pornillos O, Yeager M, Ganser-Pornillos BK, Jensen GJ, Sundquist WI. Elife. 2016 Jun 2;5. pii: e16269. doi: 10.7554/eLife.16269. 10.7554/eLife.16269 PubMed 27253068
