acta2_GFP_pA_pDestTolpA2
(Plasmid #78684)

• Purpose: acta2:GFP transgenesis construct
• Depositing Lab: Sarah Childs
• Publication: Whitesell et al PLoS One. 2014 Mar 3;9(3):e90590. doi: 10.1371/journal.pone.0090590. eCollection 2014.

Backbone

• Vector backbone: pDestTol pA2
• Backbone manufacturer: Koichi Kawakami/ Chi-Bin Chien
• Backbone size w/o insert (bp): 2417
• Vector type: Unspecified

Growth in Bacteria

• Bacterial Resistance(s): Ampicillin, 100 μg/mL
• Growth Temperature: 37°C
• Growth Strain(s): DH5alpha
• Copy number: Unknown

Gene/Insert

• Gene/Insert name: acta2 promoter
• Alt name: actin, alpha 2, smooth muscle, aorta
• Alt name: alpha smooth muscle actin
• Species: D. rerio (zebrafish)
• Insert Size (bp): 3494
• GenBank ID: NM_212620.1
• Entrez Gene: acta2 (a.k.a. wu:fb63d03)
• Promoter: acta2

Cloning Information

• Cloning method: Gateway Cloning
• 5′ sequencing primer: Tol2-F
• 3′ sequencing primer: EGFP-N

Resource Information

• Supplemental Documents:

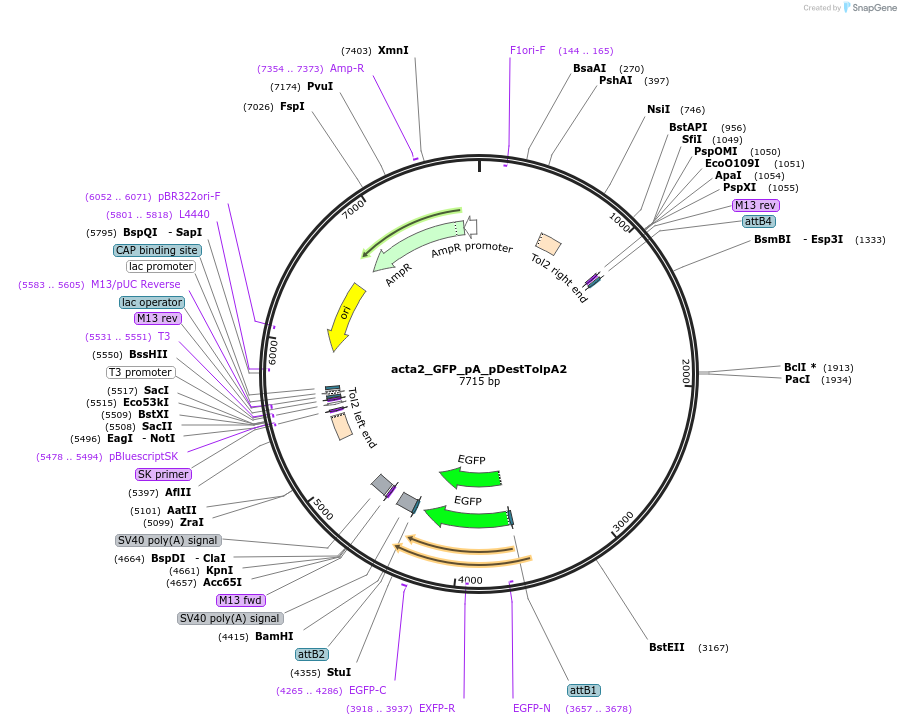

  • acta2_GFP_pA_pDestTolpA2 plasmid map
• A portion of this plasmid was derived from a plasmid made by: We gateway cloned this combination using our acta2 promoter and components from Tol2kit.

Terms and Licenses

• Academic/Nonprofit Terms:
  • UBMTA
  • National Institute of Genetics Limited Use Label License for Tol2 System
• Industry Terms:
  • Not Available to Industry
