Purpose(Empty Backbone) Suicide vector for gene replacement
-
Depositing Lab
-
Publication
-
Sequence Information
Ordering
Item | Catalog # | Description | Quantity | Price (USD) | |
---|---|---|---|---|---|
Plasmid | 78497 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 |

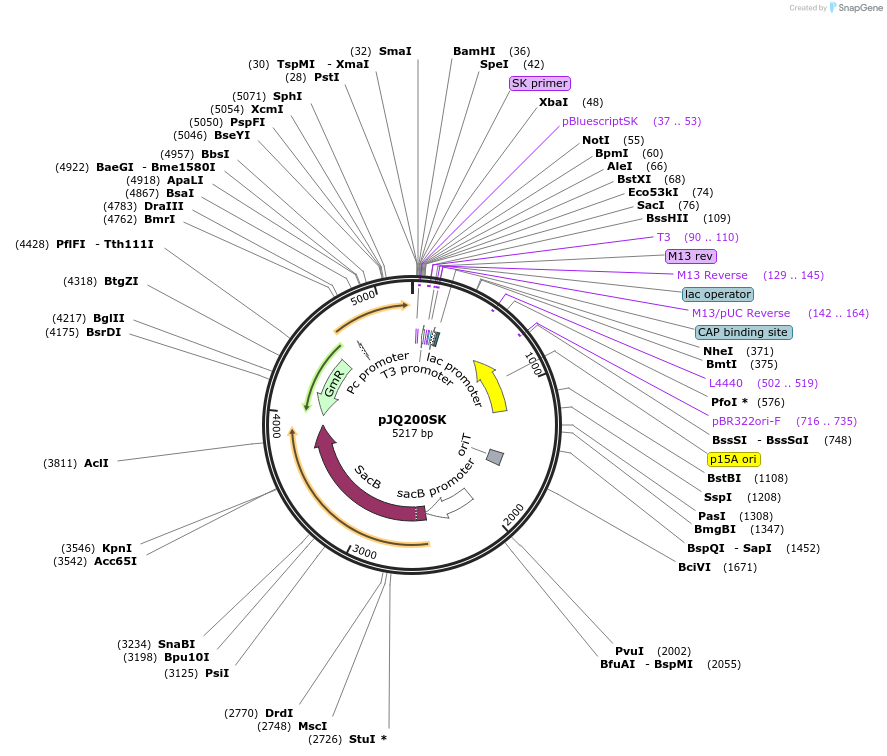

Backbone
-
Vector backbonepJQ200
- Backbone size (bp) 4922
-
Modifications to backboneadded multiple cloning site and partial lacZ alpha gene as PvuII fragment cloned into the SmaI site of pJQ200
-
Vector typeSuicide plasmid
Growth in Bacteria
-
Bacterial Resistance(s)Gentamicin, 10 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberUnknown
Cloning Information
- Cloning method Restriction Enzyme
- 5′ sequencing primer T7
- 3′ sequencing primer T3 (Common Sequencing Primers)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
Depositor Comments
This is the most popular version of the pJQ200 series of vectors. The partial lacZ alpha gene does give blue/white selection, but colonies are only pale blue after 24 hours. Blue colour is clear after 36 hrs. or by using higher x-gal concentration.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pJQ200SK was a gift from Michael Hynes (Addgene plasmid # 78497 ; http://n2t.net/addgene:78497 ; RRID:Addgene_78497) -
For your References section:
Versatile suicide vectors which allow direct selection for gene replacement in gram-negative bacteria. Quandt J, Hynes MF. Gene. 1993 May 15;127(1):15-21. 0378-1119(93)90611-6 [pii] PubMed 8486283
